5972751 Series

Manufacturer: DIALIGHT

Catalog

LED GRN/RED CLEAR 2SMD R/A

Part	Millicandela Rating	Current - Test	Lens Size [x]	Lens Size [y]	Size / Dimension [y]	Size / Dimension [x]	Configuration	Height (Max) [Max] [z]	Lens Transparency	Package / Case	Wavelength - Peak	Mounting Type	Viewing Angle	Lens Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Color	Supplier Device Package	Lens Style	Wavelength - Dominant
DIALIGHT 5972751602F	35 mcd 45 mcd	20 mA 20 mA	2 mm	1 mm	2 mm	3 mm	Common Anode	1 mm	Clear	2-SMD No Lead	574 nm 639 nm	Surface Mount Right Angle	130 °	Colorless	2 V	2 V	Green Red	2-SMD	Rectangle with Domed Top	571 nm 631 nm

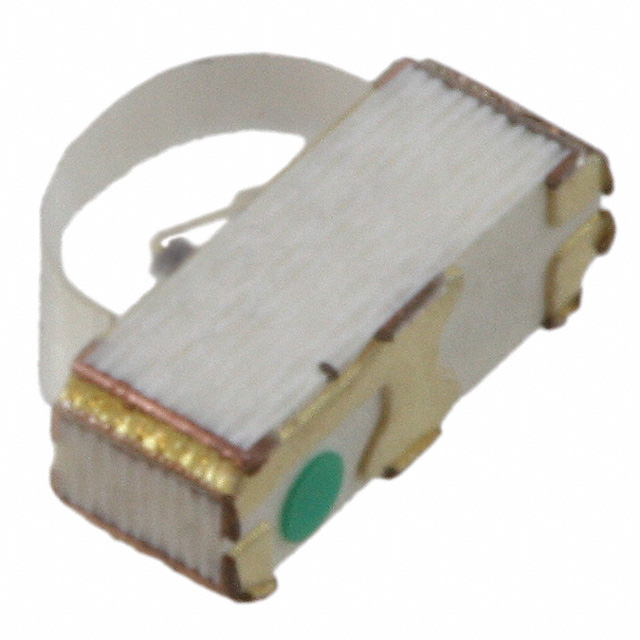

DIALIGHT 5972751607F	35 mcd 45 mcd	20 mA 20 mA	2 mm	1 mm	2 mm	3 mm	Common Anode	1 mm	Clear	2-SMD No Lead	574 nm 639 nm	Surface Mount Right Angle	130 °	Colorless	2 V	2 V	Green Red	2-SMD	Rectangle with Domed Top	571 nm 631 nm
