MS3121F10 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K

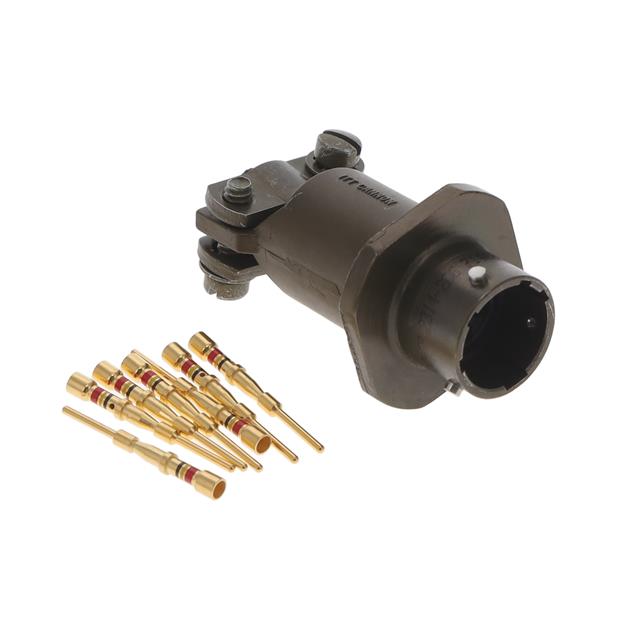

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3121 SERIES, CABLE MOUNT RECEPTACLE, 6 CONTACTS
| Part | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Features | Color | Connector Type | Fastening Type | Shell Size - Insert | Ingress Protection | Voltage Rating | Voltage Rating | Shell Finish | Orientation | Number of Positions | Contact Finish - Mating | Primary Material | Shell Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | 7.5 A | -55 C | 125 °C | 50 µin | 1.27 µm | Free Hanging (In-Line) | Strain Relief | Olive Drab | Receptacle Male Pins | Bayonet Lock | 10-6 | Environment Resistant | 600 VAC | 850 VDC | Olive Drab Cadmium | N (Normal) | 6 | Gold | Metal | Aluminum Alloy | Crimp |
