316-041 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 82POS 0.156

Part	Termination Rows	Material - Insulation	Color	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Mounting Type	Card Type	Contact Finish	Number of Positions/Bay/Row	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Flange Feature	Number of Positions	Termination	Read Out	Contact Material	Flange Feature [diameter]	Flange Feature [diameter]	Features

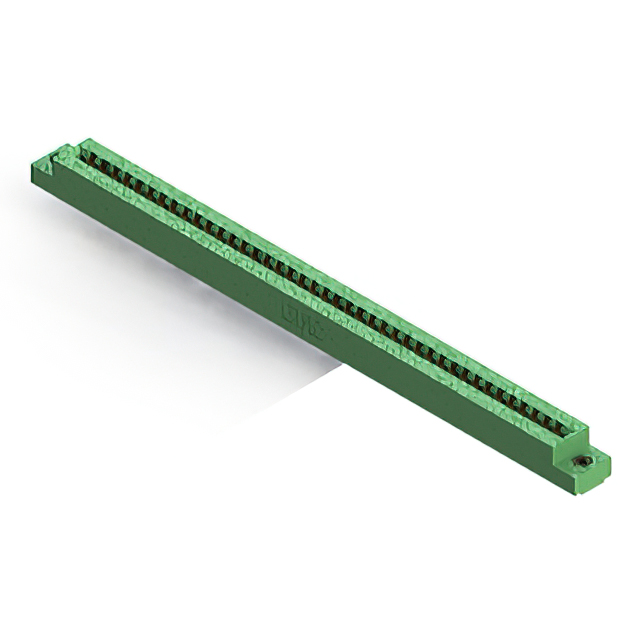

EDAC Inc. 316-041-520-108	1	Polyester Thermoplastic	Green	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Panel Mount Through Hole	Non Specified - Dual Edge	Gold	41	3.96 mm	0.156 in	0.25 Ám	10 Áin	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	82	Solder	Dual	Copper Alloy
EDAC Inc. 316-041-521-107	1	Polyester Thermoplastic	Green	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Panel Mount Through Hole	Non Specified - Dual Edge	Gold	41	3.96 mm	0.156 in	0.25 Ám	10 Áin	Cantilever	Flush Mount M3 Threaded Insert Top Opening	82	Solder	Dual	Copper Alloy

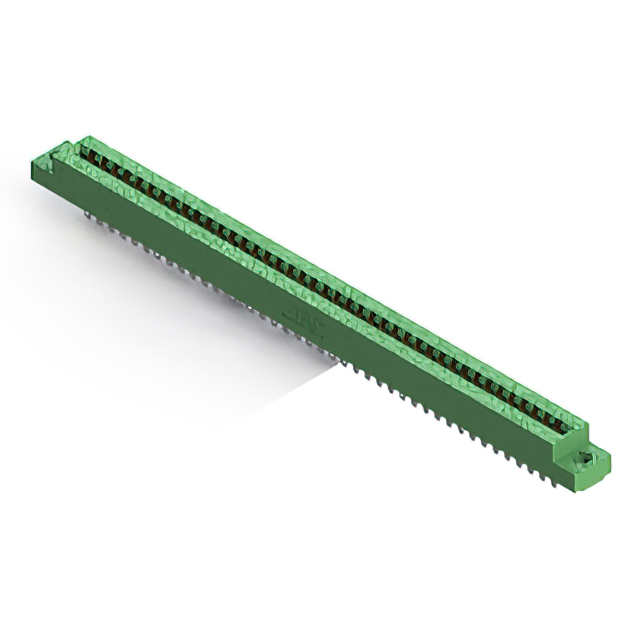

EDAC Inc. 316-041-500-104	1	Polyester Thermoplastic	Green	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Panel Mount	Non Specified - Dual Edge	Gold	41	3.96 mm	0.156 in	0.25 Ám	10 Áin	Cantilever	Flush Mount Top Opening Unthreaded	41	Solder Eyelet(s)	Dual	Copper Alloy	0.156 "	3.96 mm

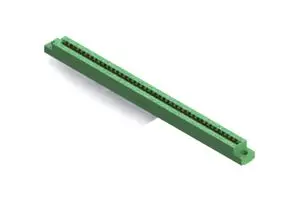

EDAC Inc. 316-041-520-104	1	Polyester Thermoplastic	Green	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Panel Mount Through Hole	Non Specified - Dual Edge	Gold	41	3.96 mm	0.156 in	0.25 Ám	10 Áin	Cantilever	Flush Mount Top Opening Unthreaded	82	Solder	Dual	Copper Alloy	0.156 "	3.96 mm

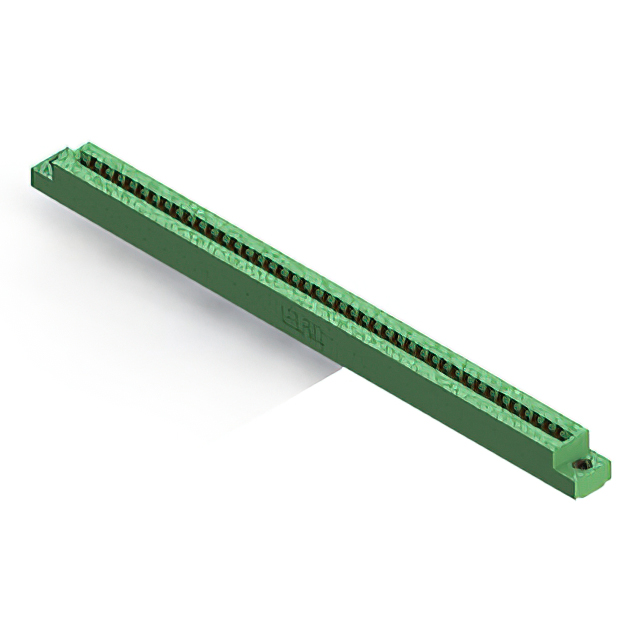

EDAC Inc. 316-041-521-108	1	Polyester Thermoplastic	Green	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Panel Mount Through Hole	Non Specified - Dual Edge	Gold	41	3.96 mm	0.156 in	0.25 Ám	10 Áin	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	82	Solder	Dual	Copper Alloy

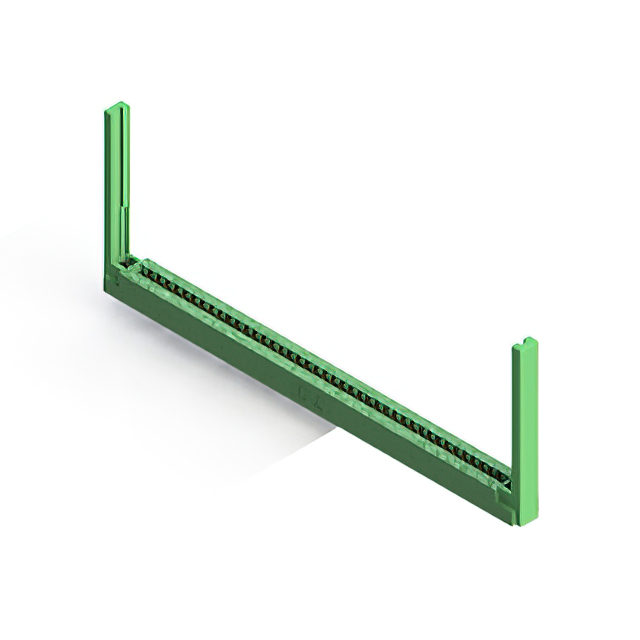

EDAC Inc. 316-041-520-168	1	Polyester Thermoplastic	Green	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Through Hole	Non Specified - Dual Edge	Gold	41	3.96 mm	0.156 in	0.25 Ám	10 Áin	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	41	Solder	Dual	Copper Alloy			Card Guides

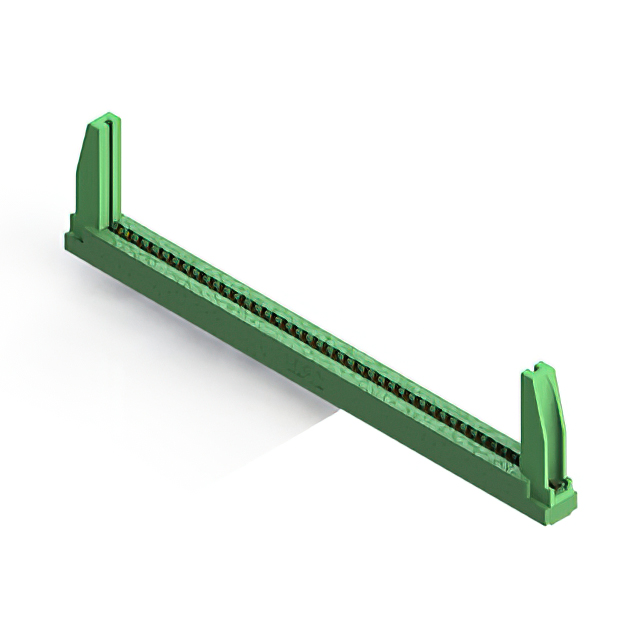

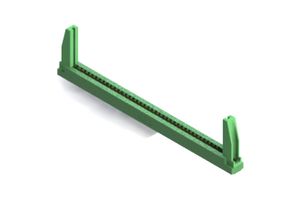

EDAC Inc. 316-041-520-178	1	Polyester Thermoplastic	Green	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Through Hole	Non Specified - Dual Edge	Gold	41	3.96 mm	0.156 in	0.25 Ám	10 Áin	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	41	Solder	Dual	Copper Alloy			Card Guides
EDAC Inc. 316-041-521-103	1	Polyester Thermoplastic	Green	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Through Hole	Non Specified - Dual Edge	Gold	41	3.96 mm	0.156 in	0.25 Ám	10 Áin	Cantilever	Floating Bobbin Flush Mount	41	Solder	Dual	Copper Alloy	0.116 "	2.95 mm
EDAC Inc. 316-041-520-103	1	Polyester Thermoplastic	Green	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Panel Mount Through Hole	Non Specified - Dual Edge	Gold	41	3.96 mm	0.156 in	0.25 Ám	10 Áin	Cantilever	Floating Bobbin Flush Mount	82	Solder	Dual	Copper Alloy	0.116 "	2.95 mm
EDAC Inc. 316-041-500-102	1	Polyester Thermoplastic	Green	Female	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Panel Mount	Non Specified - Dual Edge	Gold	41	3.96 mm	0.156 in	0.25 Ám	10 Áin	Cantilever	Flush Mount Top Opening Unthreaded	41	Solder Eyelet(s)	Dual	Copper Alloy	0.128 "	3.25 mm
