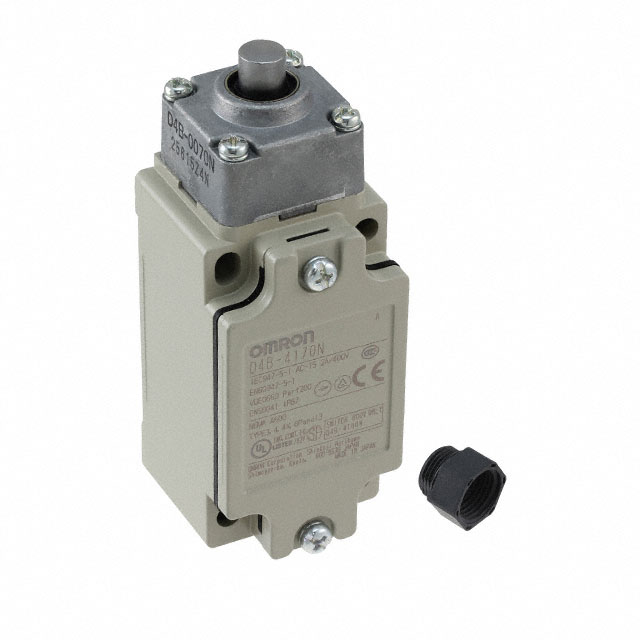

D4B-4170 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 10A 120V
| Part | Mounting Type | Circuit | Differential Travel | Differential Travel | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Release Force | Voltage Rating - AC | Current Rating (Amps) | Electrical Life | Switch Function | Overtravel | Overtravel | Voltage Rating - DC | Operating Force | Operating Position | Operating Position | Ingress Protection | Pretravel | Pretravel | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | Chassis Mount | SPDT (DB/DM) | 1 mm | 0.04 in | Round (Pin Plunger) | 80 °C | -40 C | Screw Terminal | 200 gf | 120 V | 6 A 10 A | 500000 Cycles | On-Mom | 0.197 " | 5 mm | 30 V | 1900 gf | 1.38 in | 35 mm | IP67 - Dust Tight Waterproof | 2 mm | 0.08 in | 30000000 Cycles |
