CHM-27 Series

Catalog

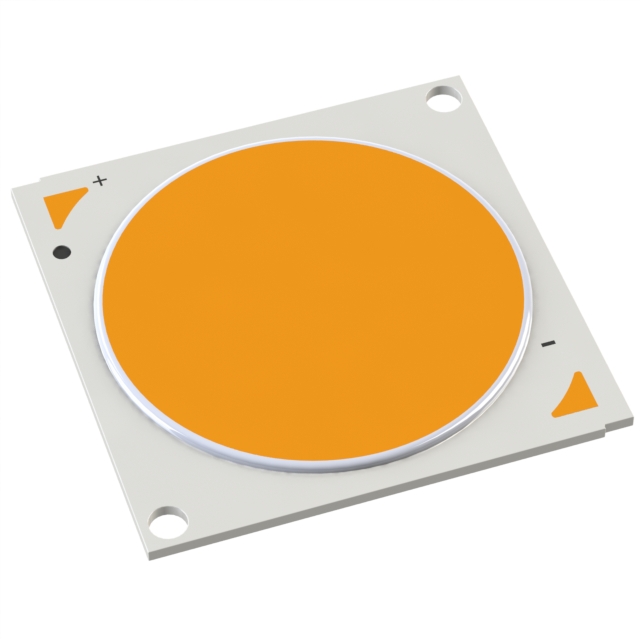

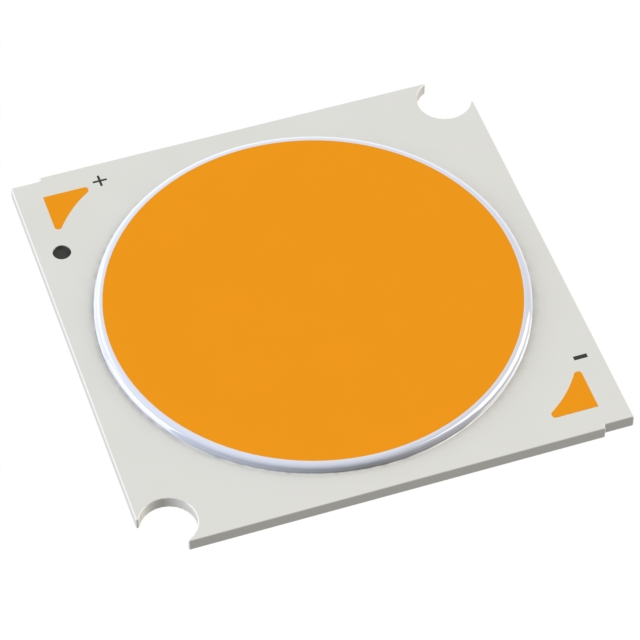

LED COB CHM27 COOL WHT SQU 5000K

Part	CCT (K)	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Lens Type	Height [z]	Current - Test	Light Emitting Surface (LES) [diameter]	Temperature - Test	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Viewing Angle	Configuration	Type	Color	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test
Luminus Devices Inc. CHM-27-50-80-36-AA00-F2-3	5000 K	3-Step MacAdam Ellipse	31.5 mm	31.5 mm	Flat	1.37 mm	2.7 A	26.5 mm	85 °C	35 V	11250 lm	120 °	Square	Chip On Board (COB)	Cool White	80	119 lm/W
Luminus Devices Inc. CHM-27-30-95-36-AB00-F2-3	3000 K	3-Step MacAdam Ellipse	31.5 mm	31.5 mm	Flat	1.37 mm	2.7 A	26.5 mm	85 °C	35 V	8085 lm	120 °	Square	Chip On Board (COB)	Warm White	95	86 lm/W
Luminus Devices Inc. CHM-27-50-70-36-AB00-F2-3	5000 K	3-Step MacAdam Ellipse	31.5 mm	31.5 mm	Flat	1.37 mm	2.7 A	26.5 mm	85 °C	35 V	11810 lm	120 °	Square	Chip On Board (COB)	Cool White	70	125 lm/W
Luminus Devices Inc. CHM-27-40-90-36-AB00-F2-3	4000 K	3-Step MacAdam Ellipse	31.5 mm	31.5 mm	Flat	1.37 mm	2.7 A	26.5 mm	85 °C	35 V	9470 lm	120 °	Square	Chip On Board (COB)	Neutral White	90	100 lm/W
Luminus Devices Inc. CHM-27-65-70-36-AB00-F2-3	6500 K		31.5 mm	31.5 mm	Flat	1.37 mm	2.7 A	26.5 mm	85 °C	35 V	11760 lm	120 °	Square	Chip On Board (COB)	Cool White	70
Luminus Devices Inc. CHM-27-30-80-36-AA00-F2-2	3000 K		31.5 mm	31.5 mm	Flat	1.37 mm	2.7 A	26.5 mm	85 °C	35 V	10270 lm	120 °	Square	Chip On Board (COB)	Warm White	80	109 lm/W
Luminus Devices Inc. CHM-27-27-90-36-AA00-F2-3	2700 K	3-Step MacAdam Ellipse	31.5 mm	31.5 mm	Flat	1.37 mm	2.7 A	26.5 mm	85 °C	35 V	7585 lm	120 °	Square	Chip On Board (COB)	Warm White	90	80 lm/W
Luminus Devices Inc. CHM-27-65-80-36-AB00-F2-5	6500 K		31.5 mm	31.5 mm	Flat	1.37 mm	2.7 A	26.5 mm	85 °C	35 V	11200 lm	120 °	Square	Chip On Board (COB)	Cool White	80	119 lm/W
Luminus Devices Inc. CHM-27-50-80-36-AB00-F2-5	5000 K	5-Step MacAdam Ellipse	31.5 mm	31.5 mm	Flat	1.37 mm	2.7 A	26.5 mm	85 °C	35 V	11430 lm	120 °	Square	Chip On Board (COB)	Cool White	80	121 lm/W
Luminus Devices Inc. CHM-27-30-90-36-AA00-F2-3	3000 K	3-Step MacAdam Ellipse	31.5 mm	31.5 mm	Flat	1.37 mm	2.7 A	26.5 mm	85 °C	35 V	8750 lm	120 °	Square	Chip On Board (COB)	Warm White	90	93 lm/W
