92_MMBX-S50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

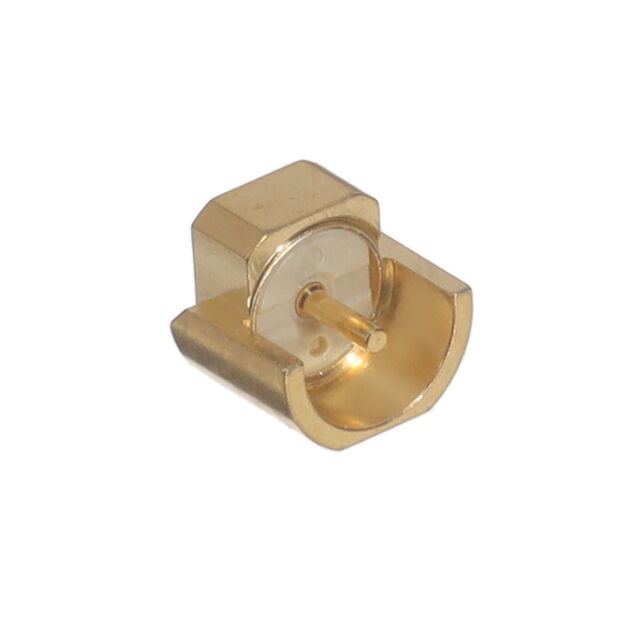

CONN MMBX 0HZ TO 12.4GHZ 50OHM SOLDER ST EDGE MOUNT F GOLD OVER NICKEL PHOSPHORUS SINGLE
| Part | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Body Finish | Body Material | Dielectric Material | Contact Termination | Shield Termination | Center Contact Material | Fastening Type | Frequency - Max [Max] | Impedance | Housing Color | Mounting Type | Connector Type | Connector Style | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 330 VDC | 155 C | -55 C | Gold | Gold | Brass | Liquid Crystal Polymer (LCP) | Solder | Solder | Brass | Snap-On | 12.4 GHz | 50 Ohms | Gold | Board Edge Cutout Surface Mount | Female Socket Jack | MMBX | 1 |
