1034-3 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.025 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Diameter [diameter]	Tail Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Socket Depth [z]	Socket Depth [z]	Termination	Contact Material

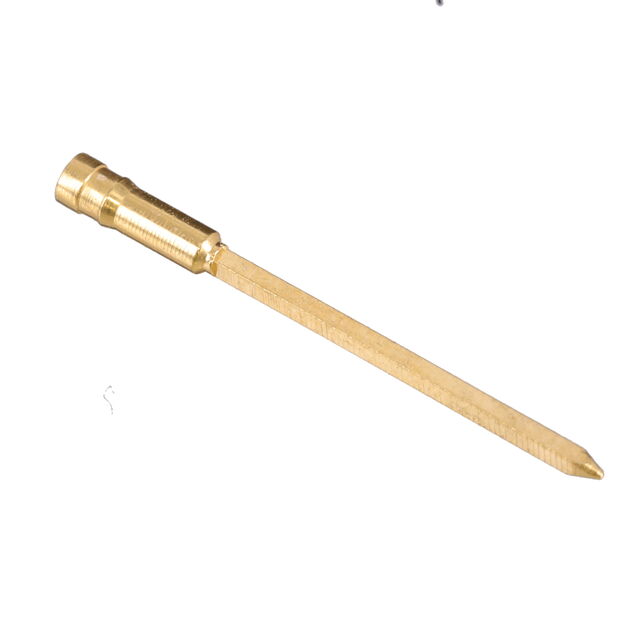

Mill-Max Manufacturing Corp. 1034-3-17-15-30-27-02-0	-55 C	125 °C	1.45 mm	0.057 in	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	1.57 mm	0.062 in	Wire Wrap	17.86 mm	0.703 "	30 Áin	0.76 Ám	4.06 mm	0.16 "	Press-Fit	Beryllium Copper
Mill-Max Manufacturing Corp. 1034-3-17-80-30-14-02-0	-55 C	125 °C	1.45 mm	0.057 in	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	1.57 mm	0.062 in	Wire Wrap	17.86 mm	0.703 "	10 Áin	0.25 Ám	4.06 mm	0.16 "	Press-Fit	Beryllium Copper
Mill-Max Manufacturing Corp. 1034-3-17-15-30-14-02-0	-55 C	125 °C	1.45 mm	0.057 in	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	1.57 mm	0.062 in	Wire Wrap	17.86 mm	0.703 "	10 Áin	0.25 Ám	4.06 mm	0.16 "	Press-Fit	Beryllium Copper
Mill-Max Manufacturing Corp. 1034-3-17-01-30-02-02-0	-55 C	125 °C	1.45 mm	0.057 in	Tin-Lead	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	1.57 mm	0.062 in	Wire Wrap	17.86 mm	0.703 "	100 µin	2.54 µm	4.06 mm	0.16 "	Press-Fit	Beryllium Copper
Mill-Max Manufacturing Corp. 1034-3-17-01-30-14-02-0	-55 C	125 °C	1.45 mm	0.057 in	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	1.57 mm	0.062 in	Wire Wrap	17.86 mm	0.703 "	10 Áin	0.25 Ám	4.06 mm	0.16 "	Press-Fit	Beryllium Copper
Mill-Max Manufacturing Corp. 1034-3-17-80-30-84-02-0	-55 C	125 °C	1.45 mm	0.057 in	Tin	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	1.57 mm	0.062 in	Wire Wrap	17.86 mm	0.703 "	100 µin	2.54 µm	4.06 mm	0.16 "	Press-Fit	Beryllium Copper
Mill-Max Manufacturing Corp. 1034-3-17-80-30-27-02-0	-55 C	125 °C	1.45 mm	0.057 in	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	1.57 mm	0.062 in	Wire Wrap	17.86 mm	0.703 "	30 Áin	0.76 Ám	4.06 mm	0.16 "	Press-Fit	Beryllium Copper
Mill-Max Manufacturing Corp. 1034-3-17-01-30-27-02-0	-55 C	125 °C	1.45 mm	0.057 in	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.025 in	0.64 mm	1.57 mm	0.062 in	Wire Wrap	17.86 mm	0.703 "	30 Áin	0.76 Ám	4.06 mm	0.16 "	Press-Fit	Beryllium Copper
