M2012TX Series

Catalog

SWITCH ROCKER SPDT 0.4VA 28V

Part	Mechanical Life	Electrical Life	Approval Agency	Actuator Type	Circuit	Termination Style	Voltage Rating - DC	Features	Actuator Marking	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Switch Function	Voltage Rating - AC	Color - Actuator/Cap

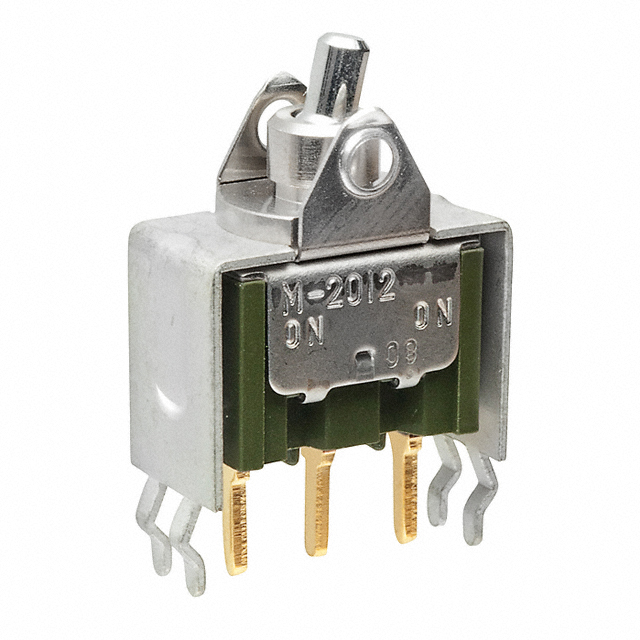

NKK Switches M2012TXG13/108	50000 Cycles	50000 Cycles	CSA UL	Actuator Arm Cap Required	SPDT	PC Pin	28 V	Epoxy Sealed Terminals	Varies by Cap	Through Hole	85 °C	-30 ░C	0.4 VA	On-On	28 V
NKK Switches M2012TXG30-DC	50000 Cycles	50000 Cycles	CSA UL	Concave	SPDT	PC Pin	28 V	Epoxy Sealed Terminals	No Marking	Right Angle Through Hole	85 °C	-30 ░C	0.4 VA	On-On	28 V	Red
NKK Switches M2012TXW13-DG	50000 Cycles	25000 Steps	CSA UL	Concave	SPDT	PC Pin	30 V	Epoxy Sealed Terminals	No Marking	Through Hole	85 °C	-30 ░C	4 A 6 A	On-On	125 V	Blue
NKK Switches M2012TXW13-DC	50000 Cycles	25000 Steps	CSA UL	Concave	SPDT	PC Pin	30 V	Epoxy Sealed Terminals	No Marking	Through Hole	85 °C	-30 ░C	4 A 6 A	On-On	125 V	Red

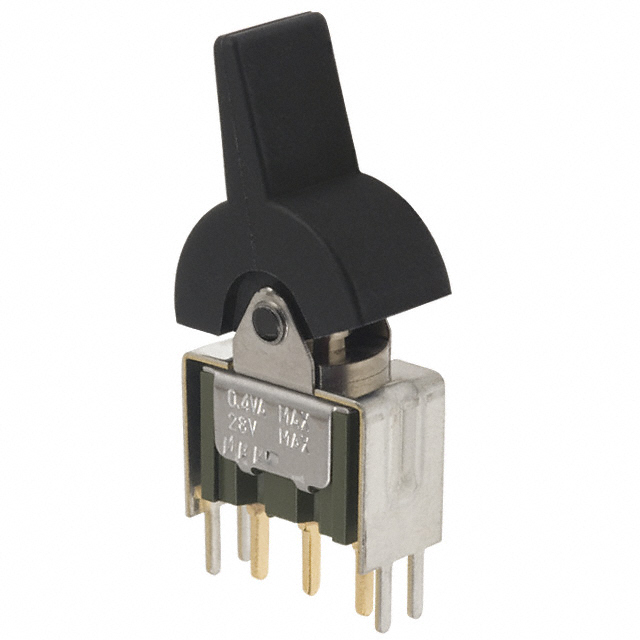

NKK Switches M2012TXG13-EA	50000 Cycles	50000 Cycles	CSA UL	Paddle	SPDT	PC Pin	28 V	Epoxy Sealed Terminals	No Marking	Through Hole	85 °C	-30 ░C	0.4 VA	On-On	28 V	Black
NKK Switches M2012TXW41-GA	50000 Cycles	25000 Steps	CSA UL	Paddle	SPDT	PC Pin	30 V	Epoxy Sealed Terminals	No Marking	Right Angle Through Hole Vertical	85 °C	-30 ░C	4 A 6 A	On-On	125 V	Black
NKK Switches M2012TXW30-FA	50000 Cycles	25000 Steps	CSA UL	Concave	SPDT	PC Pin	30 V	Epoxy Sealed Terminals	No Marking	Right Angle Through Hole	85 °C	-30 ░C	4 A 6 A	On-On	125 V	Black
NKK Switches M2012TXW41-DC	50000 Cycles	25000 Steps	CSA UL	Concave	SPDT	PC Pin	30 V	Epoxy Sealed Terminals	No Marking	Right Angle Through Hole Vertical	85 °C	-30 ░C	4 A 6 A	On-On	125 V	Red
NKK Switches M2012TXW13-DH	50000 Cycles	25000 Steps	CSA UL	Concave	SPDT	PC Pin	30 V	Epoxy Sealed Terminals	No Marking	Through Hole	85 °C	-30 ░C	4 A 6 A	On-On	125 V
NKK Switches M2012TXG13-FC	50000 Cycles	50000 Cycles	CSA UL	Concave	SPDT	PC Pin	28 V	Epoxy Sealed Terminals	No Marking	Through Hole	85 °C	-30 ░C	0.4 VA	On-On	28 V	Red
