GLCB07 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

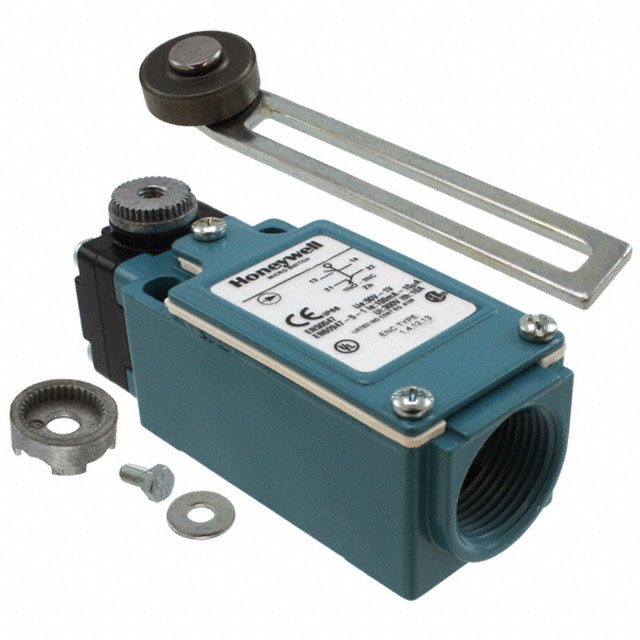

SWITCH SNAP ACTION SPDT 0.1A 50V
| Part | Circuit | Termination Style | Actuator Type | Differential Travel | Features | Voltage Rating - AC | Switch Function | Overtravel | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current Rating (Amps) | Operating Force | Mechanical Life | Pretravel | Voltage Rating - DC | Operating Position | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | SPDT | Screw Terminal | Side Rotary Adjustable Roller | 12 ° | Steel Roller | 50 V | On-Mom | 49 ° | 85 °C | -40 °C | Chassis Mount | 100 mA | 12 gfm | 10000000 Cycles | 26 ° | 50 VDC | 26 ° | IP67 - Dust Tight Waterproof |
Honeywell Sensing and Productivity Solutions | SPDT | Screw Terminal | Coil Spring | 10 ° | 50 V | On-Mom | 35 ° | 85 °C | -25 °C | Chassis Mount | 100 mA | 132 gf | 5000000 Cycles | 16 ° | 50 VDC | 16 ° | IP66 |
