306-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

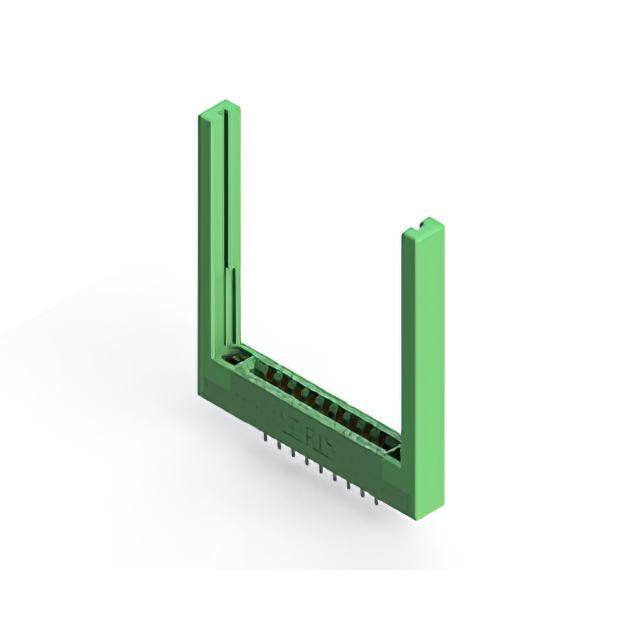

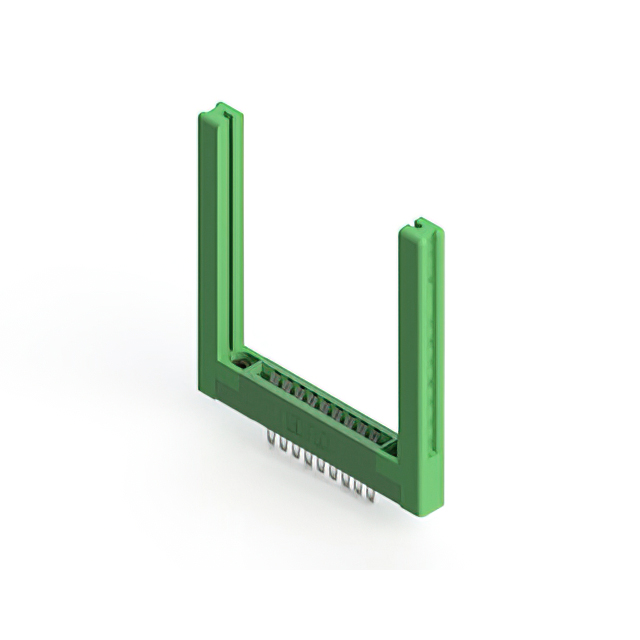

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 9 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Color | Termination | Features | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Material | Number of Positions | Card Type | Flange Feature | Pitch [x] | Pitch [x] | Mounting Type | Number of Positions/Bay/Row [custom] | Material - Insulation | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Green | Solder | Card Guides | Female | -40 °C | 105 ░C | Cantilever | Copper Alloy | 18 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Panel Mount Through Hole | 9 | Polyester Thermoplastic | 2 | ||
 EDAC Inc. | 1 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Green | Solder | Female | -40 °C | 105 ░C | Cantilever | Copper Alloy | 18 | Non Specified - Dual Edge | Floating Bobbin Flush Mount | 0.156 in | 3.96 mm | Panel Mount Through Hole | 9 | Polyester Thermoplastic | 2 | 0.116 in | 2.95 mm | |||
 EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Green | Solder Eyelet(s) | Card Guides | Female | -40 °C | 105 ░C | Cantilever | Copper Alloy | 18 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | 9 | Polyester Thermoplastic | 2 | |||
 EDAC Inc. | 1 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Green | Solder Eyelet(s) | Card Guides | Female | -40 °C | 105 ░C | Cantilever | Copper Alloy | 18 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | 9 | Polyester Thermoplastic | 2 | |||||
 EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Green | Solder | Female | -40 °C | 105 ░C | Cantilever | Copper Alloy | 18 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Through Hole | 9 | Polyester Thermoplastic | 2 | ||||
 EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Green | Solder | Card Guides | Female | -40 °C | 105 ░C | Cantilever | Copper Alloy | 18 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Panel Mount Through Hole | 9 | Polyester Thermoplastic | 2 | ||
 EDAC Inc. | 1 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Green | Solder Eyelet(s) | Female | -40 °C | 105 ░C | Cantilever | Copper Alloy | 18 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | 9 | Polyester Thermoplastic | 2 | ||||||
 EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Green | Solder | Female | -40 °C | 105 ░C | Cantilever | Copper Alloy | 18 | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | 0.156 in | 3.96 mm | Panel Mount Through Hole | 9 | Polyester Thermoplastic | 2 | |||
 EDAC Inc. | 1 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Green | Solder | Female | -40 °C | 105 ░C | Cantilever | Copper Alloy | 18 | Non Specified - Dual Edge | Floating Bobbin Flush Mount | 0.156 in | 3.96 mm | Panel Mount Through Hole | 9 | Polyester Thermoplastic | 2 | 0.116 in | 2.95 mm | |||
 EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Green | Solder | Female | -40 °C | 105 ░C | Cantilever | Copper Alloy | 18 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Panel Mount Through Hole | 9 | Polyester Thermoplastic | 2 |
