WR9QD2000 Series

Catalog

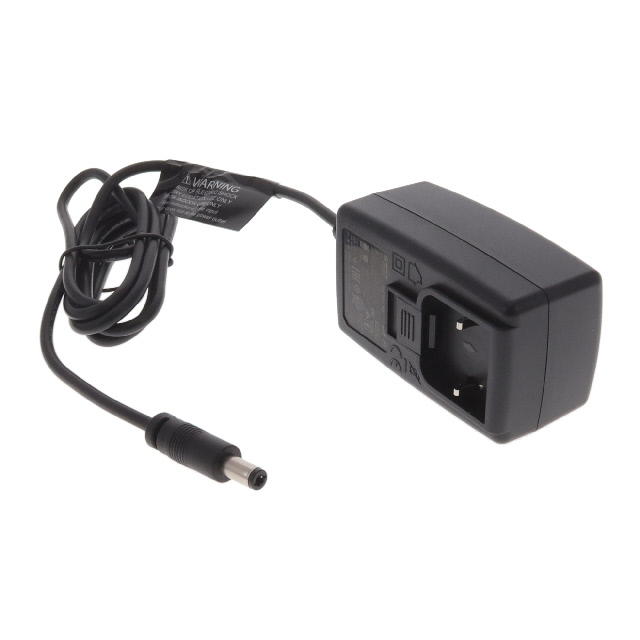

AC/DC WALL MOUNT ADAPTER 9V 18W

Part	Power (Watts)	Efficiency	Applications	No Load Power Consumption	Polarization	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Output Connector [x]	Output Connector [diameter]	Output Connector	Approval Agency	Input Connector	Input Type	Region Utilized	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output	Form
GlobTek, Inc. WR9QD2000CCPNAIMR6B	18 W	CoC Tier 2 Level VI	Household Appliances ITE (Commercial) Medical	75 mW	Positive Center	2 A	74 mm	1.45 in	2.91 in	43.5 mm	1.71 in	36.8 mm	11 mm	2.1 mm 5.5 mm	Barrel Plug	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	Multi-Blade	Multi-Blade (Sold Separately)	International	1.2 m	47.2 in	264 VAC	90 VAC	-20 ░C	40 °C	9 V	Wall Mount
GlobTek, Inc. WR9QD2000LCPCIMR6B	18 W	CoC Tier 2 Level VI	Household Appliances ITE (Commercial) Medical	75 mW	Positive Center	2 A	74 mm	1.45 in	2.91 in	43.5 mm	1.71 in	36.8 mm	11 mm	2.5 mm 5.5 mm	Barrel Plug	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	Multi-Blade	Multi-Blade (Sold Separately)	International	1.2 m	47.2 in	264 VAC	90 VAC	-20 ░C	40 °C	9 V	Wall Mount
GlobTek, Inc. WR9QD2000EJ3MED(R6B)	18 W	CoC Tier 2 Level VI	Household Appliances ITE (Commercial) Medical	75 mW	Positive Center	2 A	74 mm	1.45 in	2.91 in	43.5 mm	1.71 in	36.8 mm	9.5 mm	1.7 mm 4.75 mm	Barrel Plug	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	Multi-Blade	Multi-Blade (Sold Separately)	International	1.2 m	47.2 in	264 VAC	90 VAC	-20 ░C	40 °C	9 V	Wall Mount
