TPS62510 Series

Catalog

IC REG BUCK ADJ 1.5A 10VSON

Part	Current - Output	Mounting Type	Frequency - Switching	Voltage - Input (Min) [Min]	Package / Case	Voltage - Output (Min/Fixed)	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Output Type	Topology	Supplier Device Package	Function	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Utilized IC / Part	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Regulator Topology	Contents
Texas Instruments TPS62510DRCTG4	1.5 A	Surface Mount	1.5 MHz	1.8 V	10-VFDFN Exposed Pad	0.6 V	Positive	85 C	-40 ¯C	1	Adjustable	Buck	10-VSON (3x3)	Step-Down	3.8 V	3.8 V
Texas Instruments TPS62510DRCT	1.5 A	Surface Mount	1.5 MHz	1.8 V	10-VFDFN Exposed Pad	0.6 V	Positive	85 C	-40 ¯C	1	Adjustable	Buck	10-VSON (3x3)	Step-Down	3.8 V	3.8 V

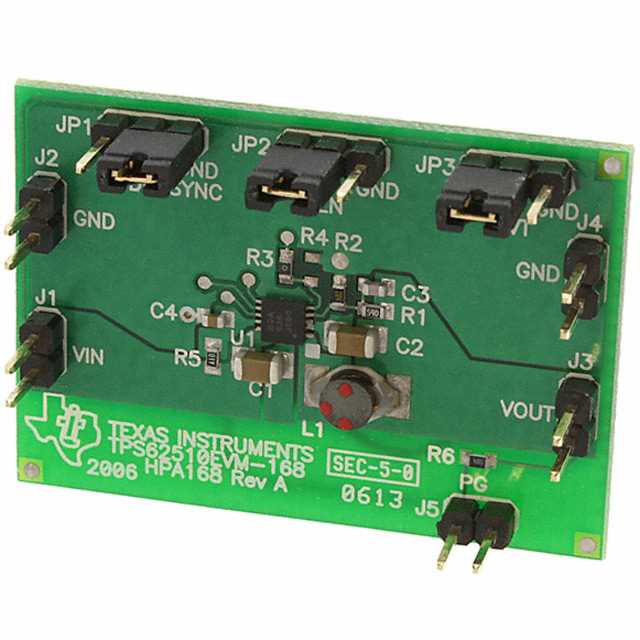

Texas Instruments TPS62510EVM-168	1.5 A		1.5 MHz														1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	TPS62510	1.8 V	3.8 V	1.8 V	DC/DC Step Down	Buck	Board(s)
Texas Instruments TPS62510DRCR	1.5 A	Surface Mount	1.5 MHz	1.8 V	10-VFDFN Exposed Pad	0.6 V	Positive	85 C	-40 ¯C	1	Adjustable	Buck	10-VSON (3x3)	Step-Down	3.8 V	3.8 V
