ERA.01 Series
Manufacturer: LEMO
Beta
⌘K

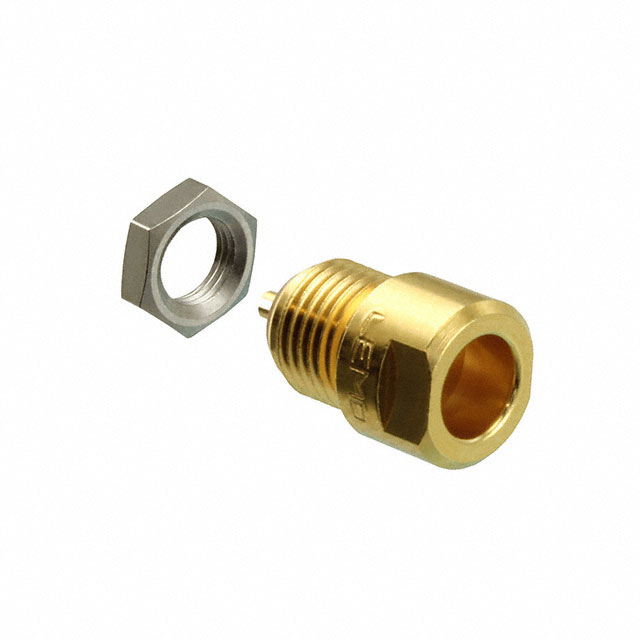

CONN MINI COAX RCPT STR 50 OHM
| Part | Dielectric Material | Includes | Mating Cycles | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Voltage Rating | Mounting Feature | Housing Color | Mounting Type | Fastening Type | Number of Ports | Contact Termination | Ingress Protection | Shield Termination | Connector Type | Center Contact Material | Connector Style | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Polyetheretherketone (PEEK) | 1 Connector 1 Nut | 1000 | Gold | Brass | -55 C | 230 °C | Gold | 300 VDC | Bulkhead - Rear Side Nut | Gold | Panel Mount | Push-Pull | 1 | Solder Cup | IP50 - Dust Protected | Solder | Receptacle Female Socket | Bronze | Miniature Coaxial | 50 Ohms |
