LIQUID LEVEL CONTROL
Description
AI

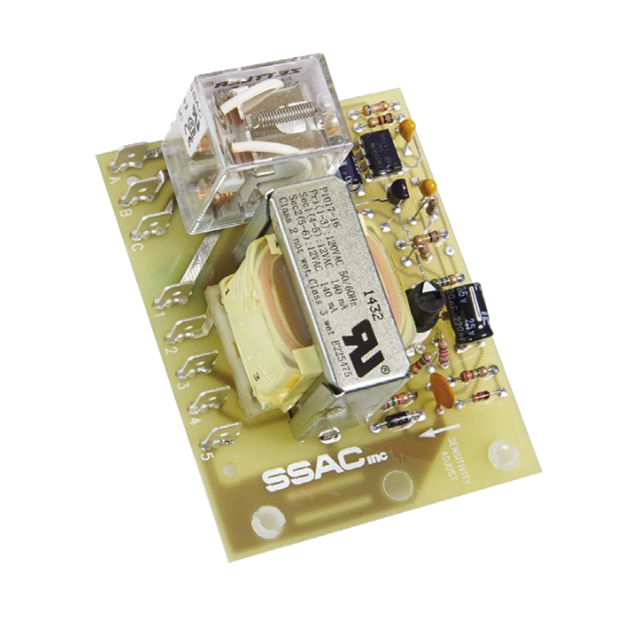

LLC14A1AX is a single-probe, open board conductive liquid level control with input voltage ac of 120 and a fixed time delay of 1 s.
Beta
⌘K
LIQUID LEVEL CONTROL
LIQUID LEVEL CONTROL
| Part | Voltage - Supply | Sensitivity [Min] | Sensitivity [Max] | Contact Form | Mounting Type | Contact Rating @ Voltage | Output Type | Features | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 120 VAC | 1 kOhm | 250 kOhm | SPDT (1 Form C) SPST-NO (1 Form A) | Chassis Mount | 10 A | Relay | Adjustable Sensitivity | Quick Connect - 0.250" (6.3mm) | 55 °C | -20 ░C | Constant Level |
