TPS61230 Series
Manufacturer: Texas Instruments
Beta
⌘K
5-A, ADJUSTABLE OUTPUT VOLTAGE HIGH EFFICIENCY SYNCHRONOUS BOOST CONVERTER
| Part | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Synchronous Rectifier | Voltage - Output (Max) [Max] | Current - Output | Frequency - Switching | Voltage - Input (Max) [Max] | Output Configuration | Function | Mounting Type | Supplier Device Package | Topology | Voltage - Output (Min/Fixed) | Output Type | Number of Outputs | Voltage - Input (Min) [Min] | Main Purpose | Utilized IC / Part | Board Type | Voltage - Output | Outputs and Type | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Contents | Supplied Contents | Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 10-VFDFN Exposed Pad | -40 °C | 125 ¯C | 5.5 V | 5 A | 2 MHz | 5.5 V | Positive | Step-Up | Surface Mount | 10-VSON (3x3) | Boost | 2.5 V | Adjustable | 1 | 2.3 V | ||||||||||||

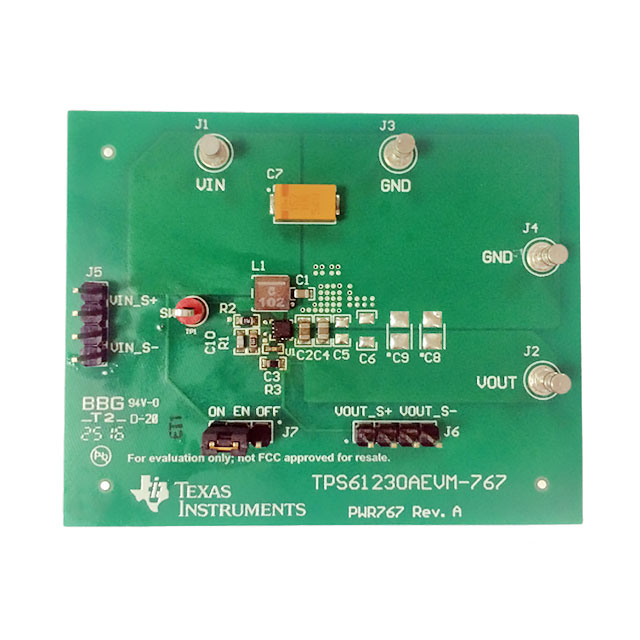

 Texas Instruments | 2.4 A | 1.15 MHz | DC/DC Step Up | TPS61230A | Fully Populated | 5 V | 1 Non-Isolated Output Non-Isolated | 2.5 V | 4.5 V | Boost | Board(s) | Board(s) | 1 | |||||||||||||||

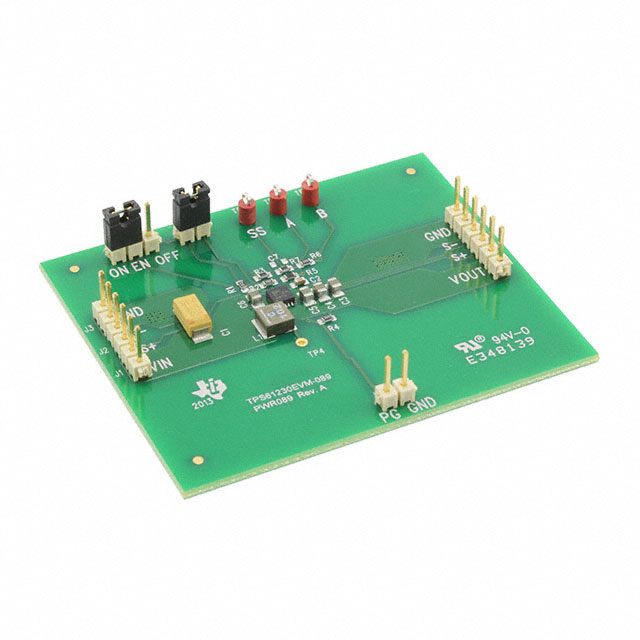

 Texas Instruments | 2.1 A | DC/DC Step Up | TPS61230 | Fully Populated | 5 V | Non-Isolated | 2.3 V | 5.5 V | Boost | Board(s) | 1 |
