ST-JL05 Series

Catalog

CONTACT PIN 22-26AWG CRIMP SLVR

Part	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Contact Type	Termination Finish	Type	Contact Finish	Contact Size	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Features	Contact Material	Contact Termination	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm˛ [Min] [custom]	Wire Gauge or Range - mm˛ [Max] [custom]
JAE Electronics ST-JL05-20P-C2-10000	0.13 mm˛	0.3 mm˛	Pin	Copper Alloy	Signal Stamped	Silver	20	0.13 mm²	0.3 mm²	Insulation Support	Copper Alloy	Crimp	22 AWG	26 AWG
JAE Electronics ST-JL05-16S-C1-3500			Socket	Copper Alloy	Signal Stamped	Silver	16			Insulation Support	Copper Alloy	Crimp	14 AWG	16 AWG

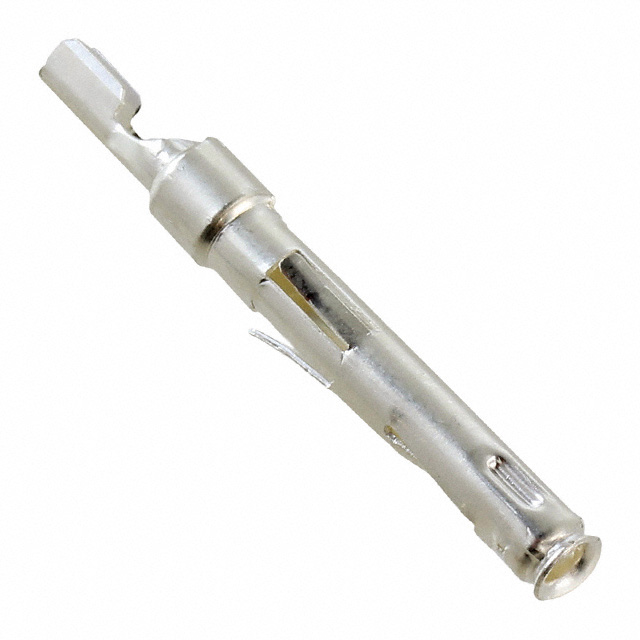

JAE Electronics ST-JL05-16S-C3-100	0.2 mm˛	0.5 mm˛	Socket	Copper Alloy	Signal Stamped	Silver	16	0.2 mm²	0.5 mm²	Insulation Support	Copper Alloy	Crimp	20 AWG	24 AWG
JAE Electronics ST-JL05-16P-C2-3500			Pin	Copper Alloy	Signal Stamped	Silver	16	0.5 mm²	1.25 mm²	Insulation Support	Copper Alloy	Crimp	16 AWG	20 AWG	0.5 mm˛	1.25 mm˛
JAE Electronics ST-JL05-20P-C1-100-(A534G)	0.3 mm˛	0.8 mm˛	Pin	Copper Alloy	Signal Stamped	Gold	20	0.3 mm²	0.8 mm²	Insulation Support	Copper Alloy	Crimp	18 AWG	22 AWG

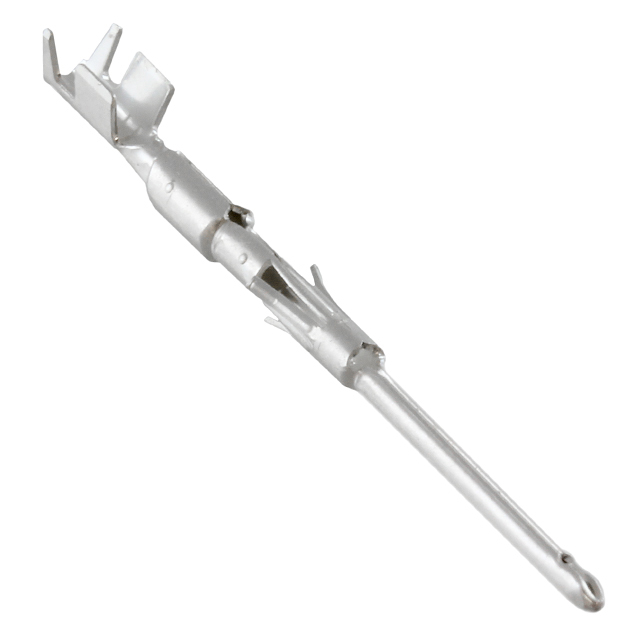

JAE Electronics ST-JL05-20P-C1-100	0.3 mm˛	0.8 mm˛	Pin	Copper Alloy	Signal Stamped	Silver	20	0.3 mm²	0.8 mm²	Insulation Support	Copper Alloy	Crimp	18 AWG	22 AWG
JAE Electronics ST-JL05-16S-C1-100			Socket	Copper Alloy	Signal Stamped	Silver	16			Insulation Support	Copper Alloy	Crimp	14 AWG	16 AWG
JAE Electronics ST-JL05-16P-C1-3500			Pin	Copper Alloy	Signal Stamped	Silver	16			Insulation Support	Copper Alloy	Crimp	14 AWG	16 AWG

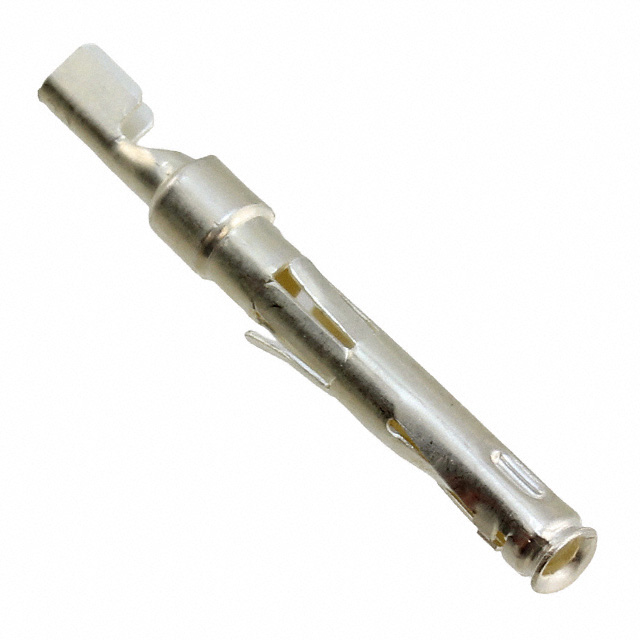

JAE Electronics ST-JL05-16S-C2-100			Socket	Copper Alloy	Signal Stamped	Silver	16	0.5 mm²	1.25 mm²	Insulation Support	Copper Alloy	Crimp	16 AWG	20 AWG	0.5 mm˛	1.25 mm˛
JAE Electronics ST-JL05-20P-C1-10000			Pin	Copper Alloy	Signal Stamped	Silver	20	0.3 mm²	0.8 mm²	Insulation Support	Copper Alloy	Crimp	18 AWG	22 AWG
