207378 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

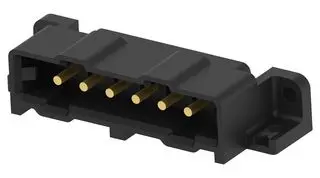

METRIMATE PIN HEADER ASSY,6P
| Part | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Insulation Material | Insulation Height | Insulation Height | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating | Contact Shape | Insulation Color | Material Flammability Rating | Contact Type | Number of Positions Loaded | Termination | Current Rating (Amps) | Connector Type | Contact Material | Number of Positions | Mounting Type | Applications | Features | Contact Finish - Post | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Number of Rows | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 5 mm | 0.197 " | 130 °C | -55 °C | Latch Holder | Nylon Polyamide (PA) | 0.5 in | 12.7 mm | Gold | 150 Áin | 3.81 Ám | 600 V | Circular | Red | UL94 V-0 | Male Pin | All | Solder | 7.5 A | Header | Brass | 6 | Through Hole Right Angle | Automotive General Purpose Industrial | Mounting Flange | Tin | Board to Board Cable | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | 1 | 4.88 mm | 0.192 in |
