PFC1212 Series
Manufacturer: Delta Electronics
Beta
⌘K

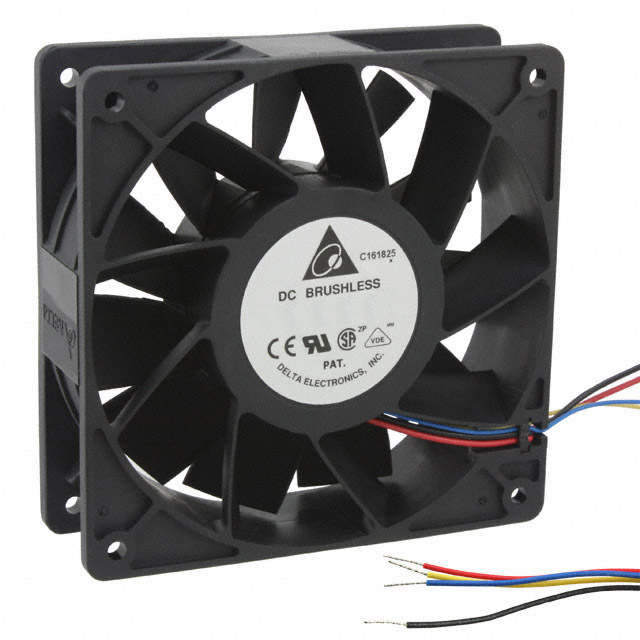

DC FAN AXIAL BALL BEARING 12V 8V TO 13.2V 252.85CFM 66.5DB 120 X 120 X 38MM
| Part | Material - Blade | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Lifetime @ Temp. | Fan Type | RPM | Termination | Power (Watts) | Weight | Weight | Noise | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Static Pressure | Static Pressure | Bearing Type | Width [y] | Features | Size / Dimension [z] | Size / Dimension [x] | Air Flow | Air Flow | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | Plastic | 8 V | 13.2 VDC | 4 A | 70000 Hrs | Tubeaxial | 5500 RPM | 4 Wire Leads | 48 W | 0.838 lb | 380.11 g | 66.5 dB(A) | -10 °C | 60 °C | 12 VDC | 1.412 in H2O | 351.7 Pa | Ball | 38 mm | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 120 mm | 120 mm | 7.08 mł/min | 252.9 CFM | CE CSA UL VDE |
