M2023TY Series

Catalog

SWITCH ROCKER DPDT 6A 125V

Part	Mechanical Life	Electrical Life	Actuator Marking	Current Rating (Amps)	Approval Agency	Voltage Rating - DC	Features	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Circuit	Voltage Rating - AC	Termination Style	Color - Actuator/Cap
NKK Switches M2023TYW01	50000 Cycles	25000 Steps	Varies by Cap	3 A 6 A	CSA UL	30 V	Epoxy Sealed Terminals	On-Off-On	85 °C	-30 ░C	Actuator Arm Cap Required	Flange Panel Mount	16 mm	28.5 mm	DPDT	125 V	Solder Lug

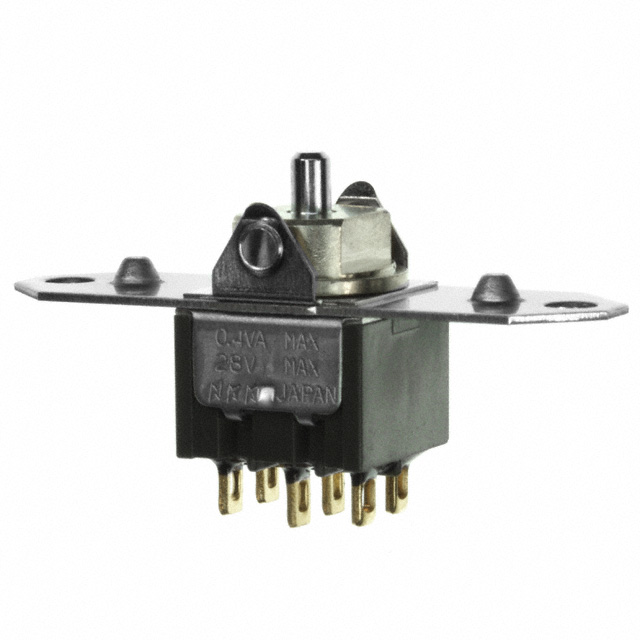

NKK Switches M2023TYG01-HH	50000 Cycles	50000 Cycles	No Marking	0.4 VA	CSA UL	28 V	Epoxy Sealed Terminals	On-Off-On	85 °C	-30 ░C	Paddle	Flange Panel Mount	16 mm	28.5 mm	DPDT	28 V	Solder Lug
NKK Switches M2023TYG03-HH	50000 Cycles	50000 Cycles	No Marking	0.4 VA	CSA UL	28 V	Epoxy Sealed Terminals	On-Off-On	85 °C	-30 ░C	Paddle	Flange Panel Mount	16 mm	28.5 mm	DPDT	28 V	PC Pin
NKK Switches M2023TYG01-JA	50000 Cycles	50000 Cycles	No Marking	0.4 VA	CSA UL	28 V	Epoxy Sealed Terminals	On-Off-On	85 °C	-30 ░C	Concave	Flange Panel Mount	16 mm	28.5 mm	DPDT	28 V	Solder Lug	Black
