500593 Series

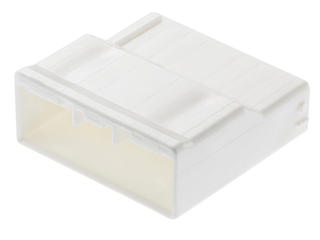

2.50mm Pitch CP-2.5 Mini Wire-to-Wire Plug Housing, Single Row, 8 Circuits
Manufacturer: Molex
Catalog
2.50mm Pitch CP-2.5 Mini Wire-to-Wire Plug Housing, Single Row, 8 Circuits
Beta
⌘K
2.50mm Pitch CP-2.5 Mini Wire-to-Wire Plug Housing, Single Row, 8 Circuits
2.50mm Pitch CP-2.5 Mini Wire-to-Wire Plug Housing, Single Row, 8 Circuits
2.50mm Pitch CP-2.5 Mini Wire-to-Wire Plug Housing, Single Row, 8 Circuits
| Part | Pitch [x] | Pitch [x] | Mounting Type | Connector Type | Color | Contact Termination | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Fastening Type | Note | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.098 in | 2.5 mm | Free Hanging (In-Line) | Plug | Natural | Crimp | 1 | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | Latch Holder | Contacts Not Included | Male Pin | 2 |
Molex | 0.098 in | 2.5 mm | Free Hanging (In-Line) | Plug | Yellow | Crimp | 1 | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | Latch Holder | Contacts Not Included | Male Pin | 4 |
 Molex | 0.098 in | 2.5 mm | Free Hanging (In-Line) | Plug | Natural | Crimp | 1 | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | Latch Holder | Contacts Not Included | Male Pin | 7 |
 Molex | 0.098 in | 2.5 mm | Free Hanging (In-Line) | Plug | Natural | Crimp | 1 | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | Latch Holder | Contacts Not Included | Male Pin | 4 |
Molex | 0.098 in | 2.5 mm | Free Hanging (In-Line) | Plug | Natural | Crimp | 1 | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | Latch Holder | Contacts Not Included | Male Pin | 8 |
Molex | 0.098 in | 2.5 mm | Free Hanging (In-Line) | Plug | Black | Crimp | 1 | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | Latch Holder | Contacts Not Included | Male Pin | 2 |
Molex | 0.098 in | 2.5 mm | Free Hanging (In-Line) | Plug | Natural | Crimp | 1 | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | Latch Holder | Contacts Not Included | Male Pin | |
Molex | 0.098 in | 2.5 mm | Free Hanging (In-Line) | Plug | Black | Crimp | 1 | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | Latch Holder | Contacts Not Included | Male Pin | |
 Molex | 0.098 in | 2.5 mm | Free Hanging (In-Line) | Plug | Natural | Crimp | 1 | 85 °C | -40 °C | Polybutylene Terephthalate (PBT) | Latch Holder | Contacts Not Included | Male Pin | 6 |
