MWA020012 Series

Catalog

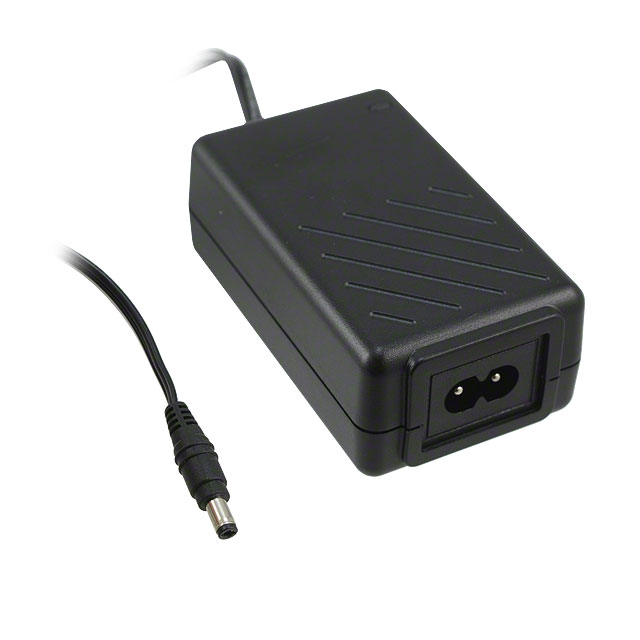

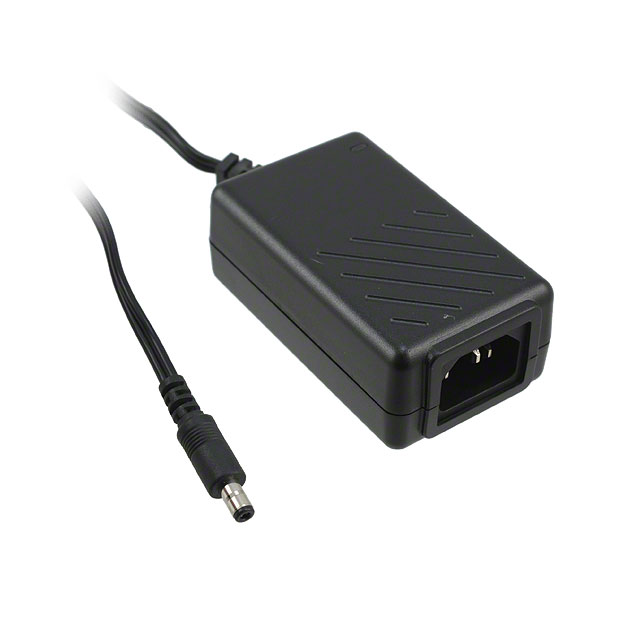

AC/DC DESKTOP ADAPTER 12V 20W

Part	Weight	Weight	Polarization	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output	Input Connector	Cord Length	Cord Length	Output Connector [diameter]	Output Connector [x]	Output Connector	Region Utilized	Efficiency	No Load Power Consumption	Approval Agency	Power (Watts)	Form	Current - Output (Max) [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Input Type
Inventus Power MWA020012B-10A	136.08 g	0.3 lb	Positive Center	1.3 in	87.7 mm	2.04 in	3.45 in	33 mm	51.8 mm	12 V	IEC 320-C8	1.83 m	72 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	International	Level V	300 mW	CB CE cTUVus	20 W	Desktop (Class II)	1.67 A	Medical	40 °C	0 °C	Cord (Sold Separately)
Inventus Power MWA020012A-10A	136.08 g	0.3 lb	Positive Center	1.3 in	87.7 mm	2.04 in	3.45 in	33 mm	51.8 mm	12 V	IEC 320-C14	1.83 m	72 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	International	Level V	300 mW	CB CE cTUVus	20 W	Desktop (Class I)	1.67 A	Medical	40 °C	0 °C	Cord (Sold Separately)
