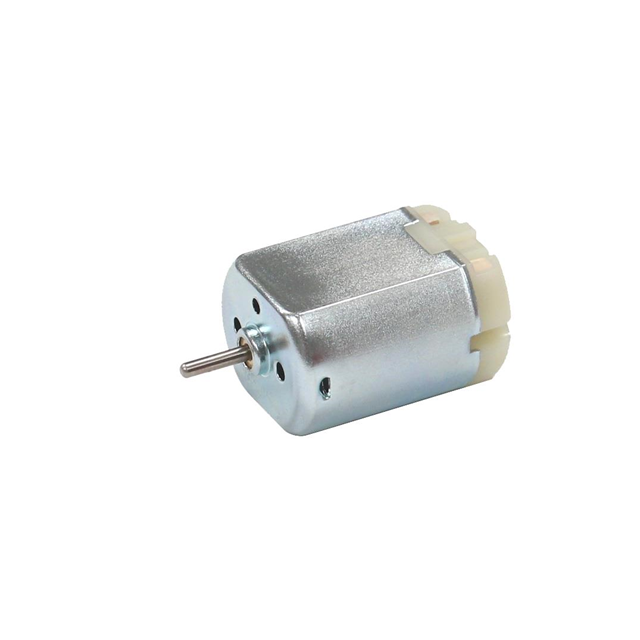

NF143G Series
Manufacturer: Johnson Motor
Beta
⌘K
LOW VOLTAGE DC MOTORS
| Part | Power - Rated | RPM | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Size / Dimension | Size / Dimension [diameter] | Size / Dimension [diameter] | Termination Style | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Function | Motor Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Johnson Motor | 7.4 W | 19600 RPM | 12 VDC | 55 °C | -10 °C | 0.492 in | 12.5 mm | 0.48 oz-in | 3.42 mNm | 0.079 in | 2 mm | Round | 0.8 in | 20.32 mm | Solder Tab | 0.488 in | 12.4 mm | Standard | Brushed | DC Motor |
