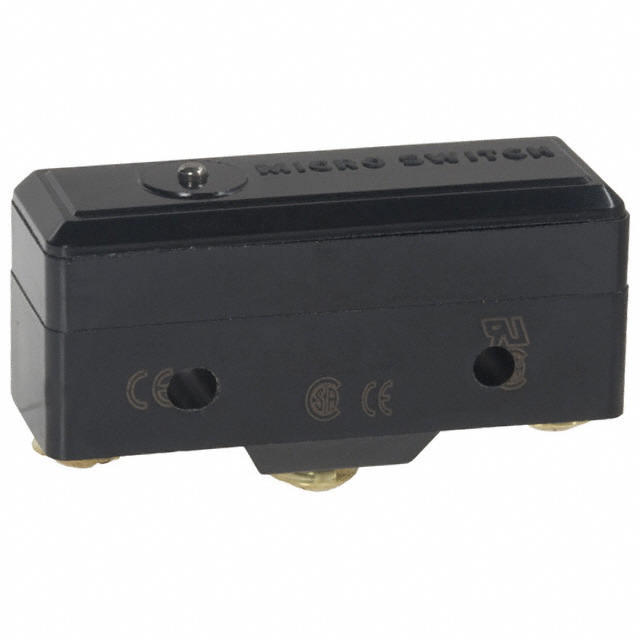

BA-2RA Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 20A 125V
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Release Force | Pretravel | Pretravel | Voltage Rating - AC | Current Rating (Amps) | Voltage Rating - DC | Termination Style | Overtravel | Overtravel | Mounting Type | Mechanical Life | Differential Travel | Differential Travel | Switch Function | Actuator Type | Operating Force [Min] | Operating Force [Max] | Operating Position | Operating Position | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 85 °C | -55 °C | 283 gf | 0.05 in | 1.27 mm | 125 V | 20 A 500 mA | 125 VDC | Screw Terminal | 0.25 mm | 0.01 in | Chassis Mount | 20000000 Cycles | 0.002 in | 0.05 mm | On-Mom | Round (Pin Plunger) | 397 gf | 624 gf | 0.64 in | 16.3 mm | SPDT |
