FSX Series

Manufacturer: OptiFuse

Catalog

FUSE AUTOMOTIVE 12A 250VAC 8AG

Part	Voltage Rating - AC	Fuse Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Breaking Capacity @ Rated Voltage	Package / Case [y]	Package / Case	Package / Case [x]	Mounting Type	Current Rating (Amps)	Response Time	Approval Agency
OptiFuse FSX-12A	250 V	Automotive	0.25 "	6.35 mm	1 in	25.4 mm	200 A	1 in	8AG	0.25 in	Requires Holder	12 Amps	Fast Blow	cURus UL 248
OptiFuse FSX-2.5A	250 V	Automotive	0.25 "	6.35 mm	1 in	25.4 mm		1 in	8AG	0.25 in	Requires Holder	2.5 A	Fast Blow	cULus UL 248
OptiFuse FSX-1A	250 V	Automotive	0.25 "	6.35 mm	1 in	25.4 mm		1 in	8AG	0.25 in	Requires Holder	1 A	Fast Blow	cULus UL 248
OptiFuse FSX-15A	250 V	Cartridge Glass	0.25 "	6.35 mm	1 in	25.4 mm	200 A	1 in	8AG	0.25 in	Requires Holder	15 A	Fast Blow	cURus UL 248
OptiFuse FSX-8A	250 V	Automotive	0.25 "	6.35 mm	1 in	25.4 mm		1 in	8AG	0.25 in	Requires Holder	8 A	Fast Blow	cULus UL 248

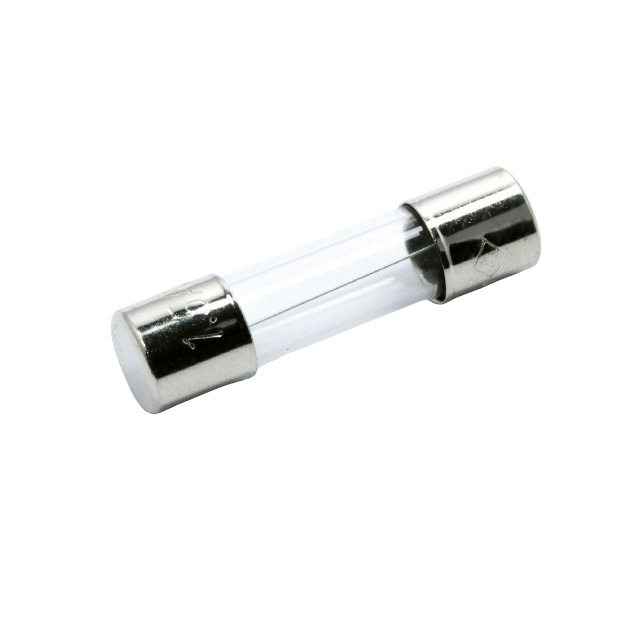

OptiFuse FSX-1.5A	250 V	Automotive	0.25 "	6.35 mm	1 in	25.4 mm		1 in	8AG	0.25 in	Requires Holder	1.5 A	Fast Blow	cULus UL 248
OptiFuse FSX-4A	250 V	Automotive	0.25 "	6.35 mm	1 in	25.4 mm		1 in	8AG	0.25 in	Requires Holder	4 A	Fast Blow	cULus UL 248
OptiFuse FSX-6A	250 V	Automotive	0.25 "	6.35 mm	1 in	25.4 mm		1 in	8AG	0.25 in	Requires Holder	6 A	Fast Blow	cULus UL 248
OptiFuse FSX-5A	250 V	Automotive	0.25 "	6.35 mm	1 in	25.4 mm		1 in	8AG	0.25 in	Requires Holder	5 A	Fast Blow	cULus UL 248
OptiFuse FSX-500MA	250 V	Automotive	0.25 "	6.35 mm	1 in	25.4 mm		1 in	8AG	0.25 in	Requires Holder	0.5 A	Fast Blow	cULus UL 248
