MPQ2167 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

EVALUATION BOARD, SYNC BUCK CONVERTER ROHS COMPLIANT: YES

Part	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Main Purpose	Current - Output	Frequency - Switching	Regulator Topology	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Contents	Voltage - Output	Topology	Supplier Device Package	Grade	Output Configuration	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Function	Qualification	Package / Case	Number of Outputs	Voltage - Input (Min) [Min]	Mounting Type	Frequency - Switching [Max]	Frequency - Switching [Min]	Output Type	Voltage - Output (Min/Fixed) [Min]

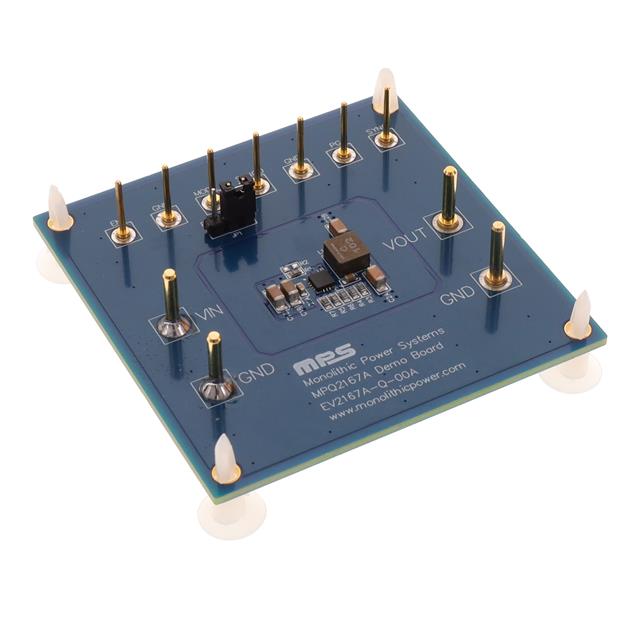

Monolithic Power Systems Inc. EV2167A-Q-00A	1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	DC/DC Step Down	6 A	2.1 MHz	Buck	MPQ2167A-AEC1	6 V	2.7 V	Board(s)	1.8 V
Monolithic Power Systems Inc. EV2167B-D-00A	1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	DC/DC Step Down	4 A	1.9 MHz	Buck	MPQ2167B-AEC1	6 V	2.7 V	Board(s)	1.8 V

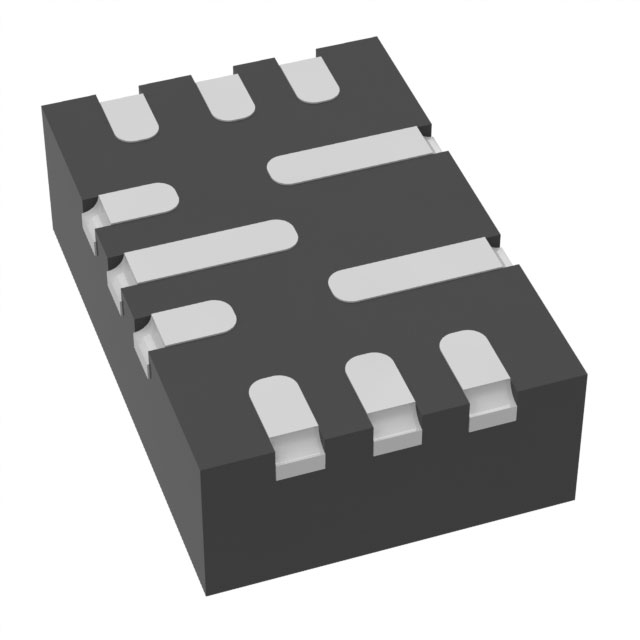

Monolithic Power Systems Inc. MPQ2167BGDE-AEC1-Z						4 A								Buck	11-QFN (2x3)	Automotive	Positive	6 V	-40 C	125 °C	Step-Down	AEC-Q100	11-PowerVFQFN	1	2.7 V	Surface Mount Wettable Flank	2.1 MHz	450 kHz	Adjustable	0.606 V

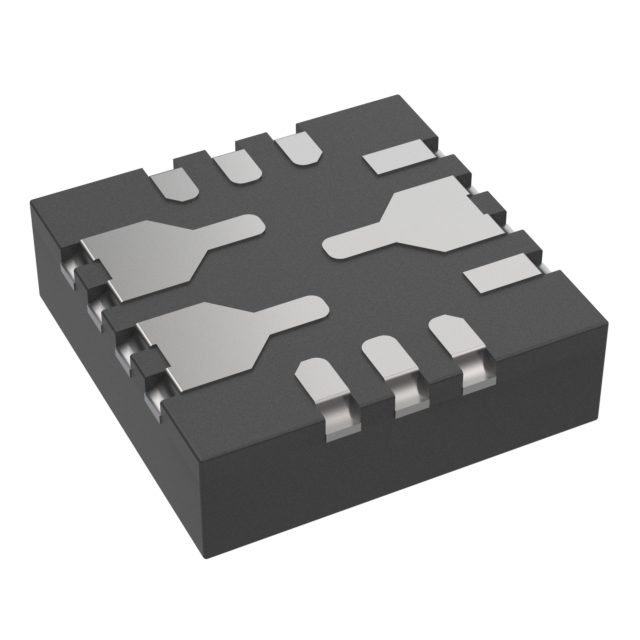

Monolithic Power Systems Inc. MPQ2167AGQE-AEC1-P						6 A								Buck		Automotive	Positive	6 V	-40 C	125 °C	Step-Down	AEC-Q100	14-PowerVFQFN	1	2.7 V	Surface Mount Wettable Flank	2.1 MHz	450 kHz	Adjustable	0.606 V
Monolithic Power Systems Inc. MPQ2167GD-AEC1-P						4 A								Buck	11-QFN (2x3)	Automotive	Positive	6 V	-40 C	125 °C	Step-Down	AEC-Q100	11-PowerVFQFN	1	2.7 V	Surface Mount	2.2 MHz	300 kHz	Adjustable	0.606 V
Monolithic Power Systems Inc. MPQ2167AGQE-AEC1-Z						6 A								Buck		Automotive	Positive	6 V	-40 C	125 °C	Step-Down	AEC-Q100	14-PowerVFQFN	1	2.7 V	Surface Mount Wettable Flank	2.1 MHz	450 kHz	Adjustable	0.606 V
Monolithic Power Systems Inc. MPQ2167BGDE-AEC1-P						4 A								Buck	11-QFN (2x3)	Automotive	Positive	6 V	-40 C	125 °C	Step-Down	AEC-Q100	11-PowerVFQFN	1	2.7 V	Surface Mount Wettable Flank	2.1 MHz	450 kHz	Adjustable	0.606 V
