RB2-1A Series

Catalog

SCRW MOUNT OFF-ON AMBER LEDDC

Part	Mechanical Life	Electrical Life	Illumination Voltage (Nominal)	Termination Style	Color - Actuator/Cap	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Type	Illumination Type, Color	Mounting Type	Panel Cutout Dimensions [diameter]	Actuator Marking	Current Rating (Amps)	Voltage Rating - DC

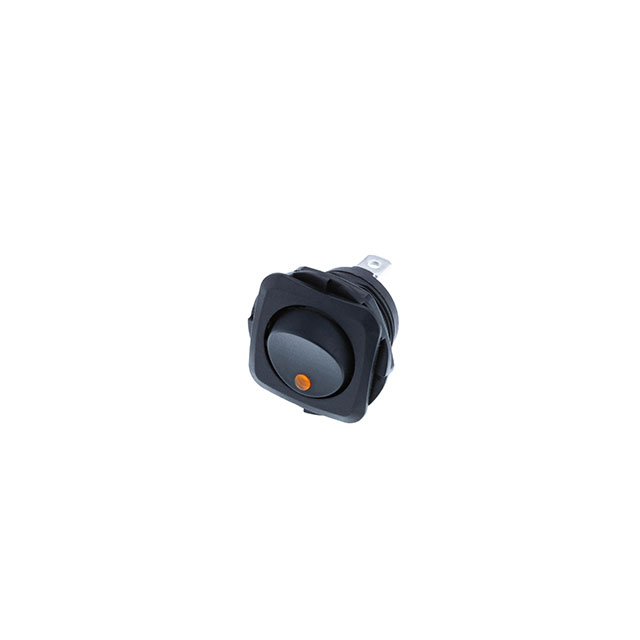

Switch Components RB2-1A-DC-2-AL	10000 Steps	6000 Cycles	14 VDC	Quick Connect	Black	SPST	85 °C	-20 ░C	On-Off	Round - Illuminated	Amber LED	Panel Mount Threaded Body with Nut	20.2 mm	No Marking	20 A	14 V

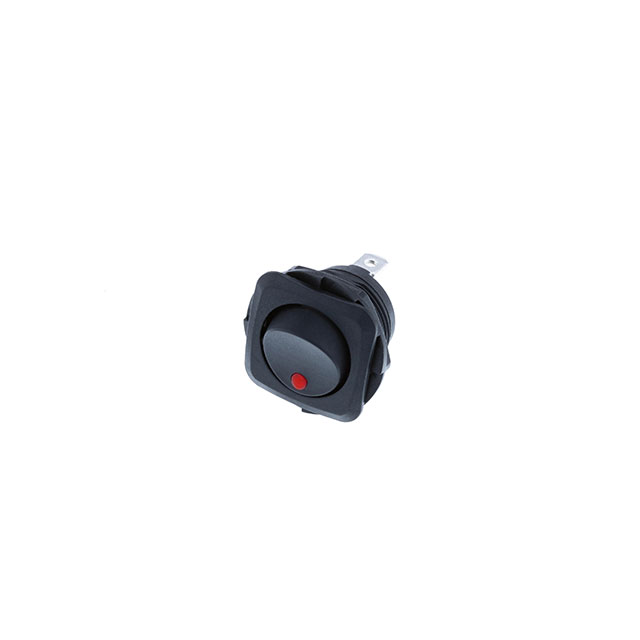

Switch Components RB2-1A-DC-2-RL	10000 Steps	6000 Cycles	14 VDC	Quick Connect	Black	SPST	85 °C	-20 ░C	On-Off	Round - Illuminated	LED Red	Panel Mount Threaded Body with Nut	20.2 mm	No Marking	20 A	14 V

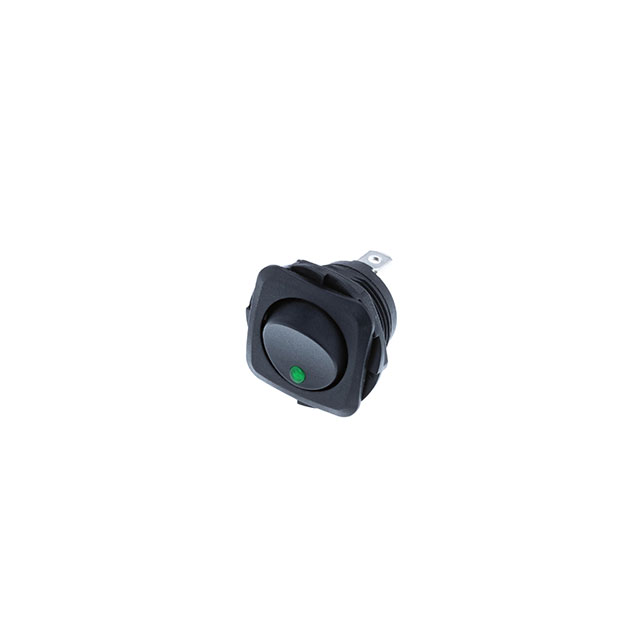

Switch Components RB2-1A-DC-2-GL	10000 Steps	6000 Cycles	14 VDC	Quick Connect	Black	SPST	85 °C	-20 ░C	On-Off	Round - Illuminated	Green LED	Panel Mount Threaded Body with Nut	20.2 mm	No Marking	20 A	14 V
