1775470 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

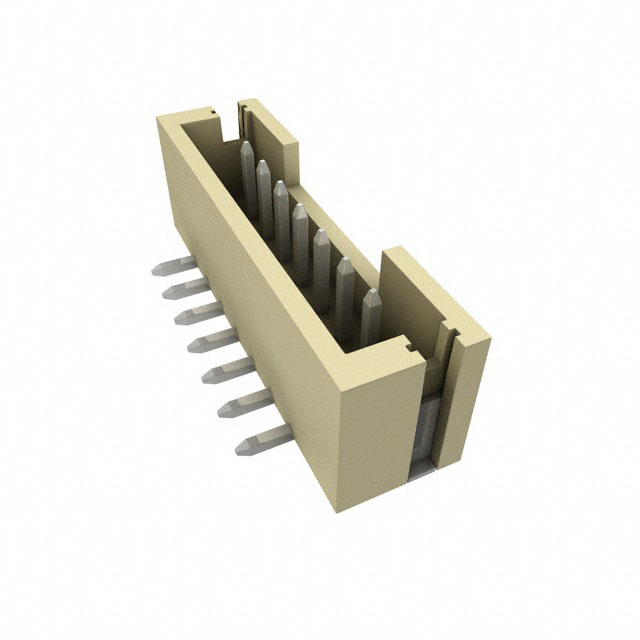

HPI CONN., 2.0MM, V/T, SMT, 7P, 80U"

Part	Contact Material	Contact Shape	Shrouding	Voltage Rating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Type	Applications	Number of Rows	Connector Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Height	Insulation Height [custom]	Termination	Contact Finish - Post	Number of Positions	Material Flammability Rating
TE Connectivity Raychem Cable Protection 1775470-7	Brass	Square	Shrouded - 4 Wall	250 VDC	Natural	2.03 µm	80 µin	Nylon 9T Polyamide (PA9T)	0.079 in	2 mm	Surface Mount	Board to Cable/Wire	2.03 µm	80 µin	All	0.138 in	3.5 mm	Male Pin	Automotive General Purpose Industrial Medical	1	Header	Solder Retention	-25 °C	85 °C	3 A	6.14 mm	0.242 in	Solder	Tin	7	UL94 V-0
TE Connectivity Raychem Cable Protection 1775470-2	Brass	Square	Shrouded - 4 Wall	250 VDC	Natural	2.03 µm	80 µin	Nylon 9T Polyamide (PA9T)	0.079 in	2 mm	Surface Mount	Board to Cable/Wire	2.03 µm	80 µin	All	0.138 in	3.5 mm	Male Pin	Automotive General Purpose Industrial Medical	1	Header	Solder Retention	-25 °C	85 °C	3 A	6.14 mm	0.242 in	Solder	Tin	2	UL94 V-0

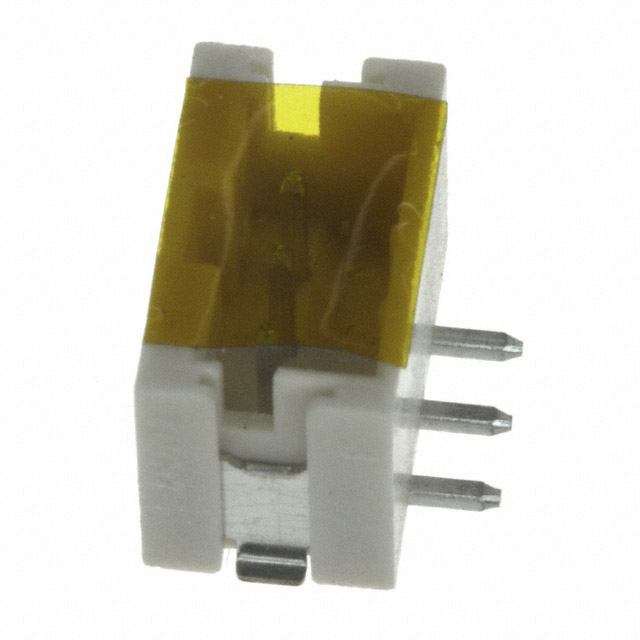

TE Connectivity Raychem Cable Protection 1775470-3	Brass	Square	Shrouded - 4 Wall	250 VDC	Natural	2.03 µm	80 µin	Nylon 9T Polyamide (PA9T)	0.079 in	2 mm	Surface Mount	Board to Cable/Wire	2.03 µm	80 µin	All	0.138 in	3.5 mm	Male Pin	Automotive General Purpose Industrial Medical	1	Header	Solder Retention	-25 °C	85 °C	3 A	6.14 mm	0.242 in	Solder	Tin		UL94 V-0
TE Connectivity Raychem Cable Protection 1775470-5	Brass	Square	Shrouded - 4 Wall	250 VDC	Natural	2.03 µm	80 µin	Nylon 9T Polyamide (PA9T)	0.079 in	2 mm	Surface Mount	Board to Cable/Wire	2.03 µm	80 µin	All	0.138 in	3.5 mm	Male Pin	Automotive General Purpose Industrial Medical	1	Header	Solder Retention	-25 °C	85 °C	3 A	6.14 mm	0.242 in	Solder	Tin		UL94 V-0
TE Connectivity Raychem Cable Protection 1775470-4	Brass	Square	Shrouded - 4 Wall	250 VDC	Natural	2.03 µm	80 µin	Nylon 9T Polyamide (PA9T)	0.079 in	2 mm	Surface Mount	Board to Cable/Wire	2.03 µm	80 µin	All	0.138 in	3.5 mm	Male Pin	Automotive General Purpose Industrial Medical	1	Header	Solder Retention	-25 °C	85 °C	3 A	6.14 mm	0.242 in	Solder	Tin	4	UL94 V-0
