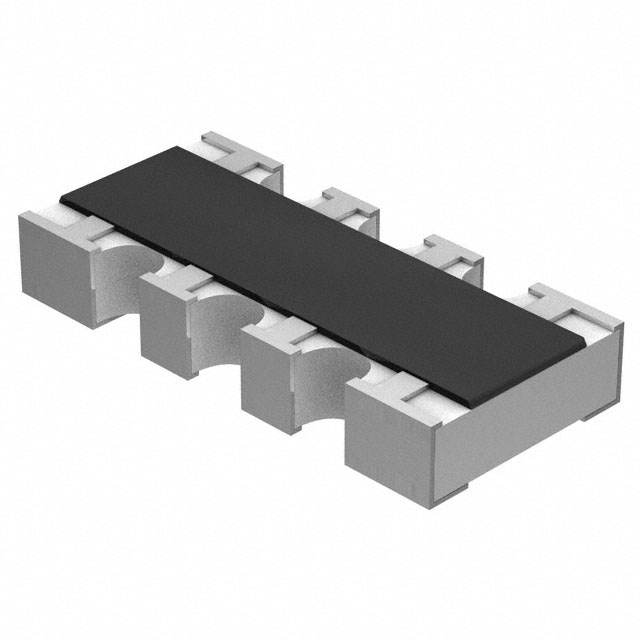

EXB-38 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
RES ARRAY 4 RES 91 OHM 1206
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Circuit Type | Mounting Type | Number of Pins | Temperature Coefficient | Grade | Qualification | Resistance (Ohms) | Number of Resistors | Package / Case | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | Isolated | Surface Mount | 8 | 200 ppm/°C | Automotive | AEC-Q200 | 91 Ohms | 4 | 1206 (3216 Metric) Convex Long Side Terminals | 1206 | -55 °C | 125 °C | 5 % | 0.6 mm | 0.024 in |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | Isolated | Surface Mount | 8 | 200 ppm/°C | Automotive | AEC-Q200 | 91 kOhms | 4 | 1206 (3216 Metric) Convex Long Side Terminals | 1206 | -55 °C | 125 °C | 5 % | 0.6 mm | 0.024 in |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | Isolated | Surface Mount | 8 | 200 ppm/°C | Automotive | AEC-Q200 | 51 kOhms | 4 | 1206 (3216 Metric) Convex Long Side Terminals | 1206 | -55 °C | 125 °C | 5 % | 0.6 mm | 0.024 in |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | Isolated | Surface Mount | 8 | 200 ppm/°C | Automotive | AEC-Q200 | 180 kOhms | 4 | 1206 (3216 Metric) Convex Long Side Terminals | 1206 | -55 °C | 125 °C | 5 % | 0.6 mm | 0.024 in |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | Isolated | Surface Mount | 8 | 200 ppm/°C | Automotive | AEC-Q200 | 330 kOhms | 4 | 1206 (3216 Metric) Convex Long Side Terminals | 1206 | -55 °C | 125 °C | 5 % | 0.6 mm | 0.024 in |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | Isolated | Surface Mount | 8 | 200 ppm/°C | Automotive | AEC-Q200 | 100 Ohms | 4 | 1206 (3216 Metric) Convex Long Side Terminals | 1206 | -55 °C | 125 °C | 5 % | 0.6 mm | 0.024 in |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | Isolated | Surface Mount | 8 | 200 ppm/°C | Automotive | AEC-Q200 | 200 Ohms | 4 | 1206 (3216 Metric) Convex Long Side Terminals | 1206 | -55 °C | 125 °C | 5 % | 0.6 mm | 0.024 in |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | Isolated | Surface Mount | 8 | 200 ppm/°C | Automotive | AEC-Q200 | 62 Ohms | 4 | 1206 (3216 Metric) Convex Long Side Terminals | 1206 | -55 °C | 125 °C | 5 % | 0.6 mm | 0.024 in |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | Isolated | Surface Mount | 8 | 200 ppm/°C | Automotive | AEC-Q200 | 7.5 Ohms | 4 | 1206 (3216 Metric) Convex Long Side Terminals | 1206 | -55 °C | 125 °C | 5 % | 0.6 mm | 0.024 in |
Panasonic Industrial Automation Sales | 0.063 in | 1.6 mm | 0.126 " | 3.2 mm | Isolated | Surface Mount | 8 | 200 ppm/°C | Automotive | AEC-Q200 | 16 Ohms | 4 | 1206 (3216 Metric) Convex Long Side Terminals | 1206 | -55 °C | 125 °C | 5 % | 0.6 mm | 0.024 in |
