5300UE Series
Manufacturer: Belden Inc.
Beta
⌘K

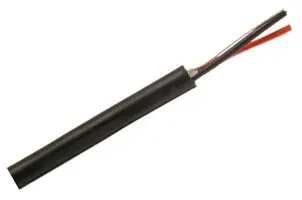

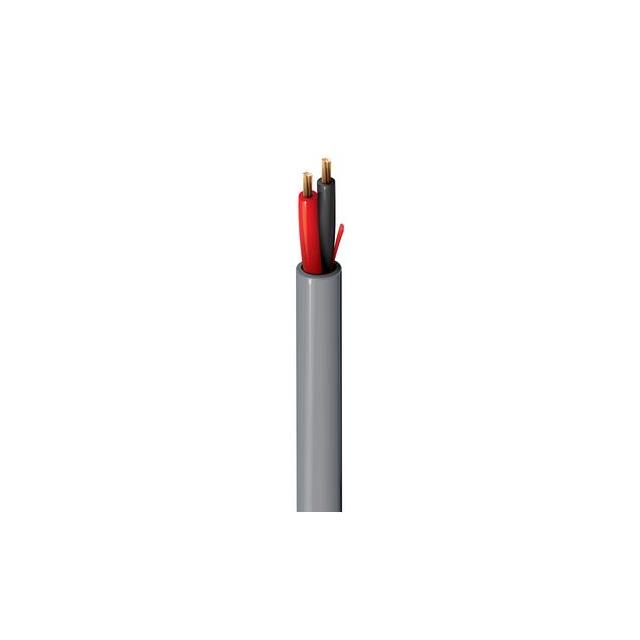

MULTICONDUCTOR CABLE, UNSHIELDED, 2 CONDUCTOR, 18 AWG, 1000 FT, 304.8 M
| Part | Conductor Material | Number of Conductors | Voltage | Jacket (Insulation) Material | Jacket Color | Usage | Wire Gauge | Cable Type | Features | Length | Length | Conductor Insulation | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Bare | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) Riser | Black | Security Sound | 18 AWG | Multi-Conductor | Rip Cord | 304.8 m | 1000 ft | Polypropylene (PP) | UL Style CMR | 0.017 " | 0.432 mm | 26 AWG | 7 | 0.158 in | 4.01 mm |
 Belden Inc. | Copper Bare | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) Riser | Gray | Security Sound | 18 AWG | Multi-Conductor | Rip Cord | 152.4 m | 500 ft | Polypropylene (PP) | UL Style CMR | 0.017 " | 0.432 mm | 26 AWG | 7 | 0.158 in | 4.01 mm |
Belden Inc. | Copper Bare | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) Riser | Black | Security Sound | 18 AWG | Multi-Conductor | Rip Cord | 304.8 m | 1000 ft | Polypropylene (PP) | UL Style CMR | 0.017 " | 0.432 mm | 26 AWG | 7 | 0.158 in | 4.01 mm |
Belden Inc. | Copper Bare | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) Riser | White | Security Sound | 18 AWG | Multi-Conductor | Rip Cord | 304.8 m | 1000 ft | Polypropylene (PP) | UL Style CMR | 0.017 " | 0.432 mm | 26 AWG | 7 | 0.158 in | 4.01 mm |
Belden Inc. | Copper Bare | 2 | 300 VDC | Poly-Vinyl Chloride (PVC) Riser | Brown | Security Sound | 18 AWG | Multi-Conductor | Rip Cord Water-Blocked | 304.8 m | 1000 ft | Polypropylene (PP) | UL Style CMR | 0.017 " | 0.432 mm | 26 AWG | 7 | 0.158 in | 4.01 mm |
