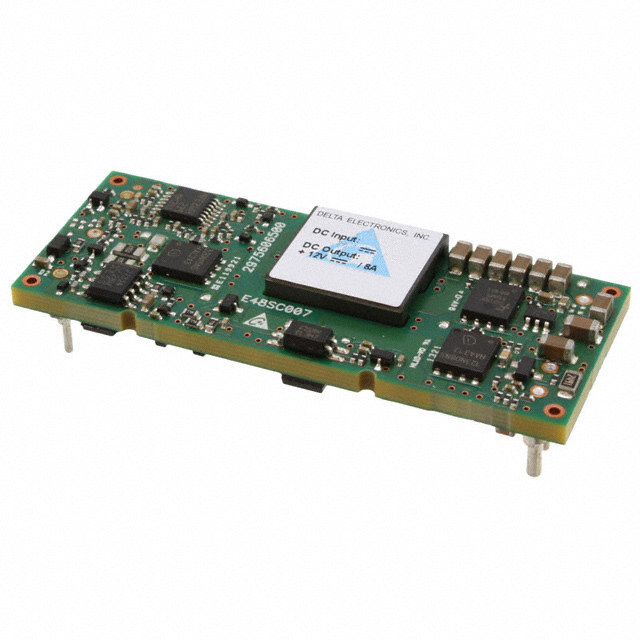

E48SC Series

Catalog

DC DC CONVERTER 12V 300W

Part	Current - Output (Max) [Max]	Applications	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Voltage - Isolation	Features	Package / Case	Power (Watts)	Efficiency	Voltage - Input (Max) [Max]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Type	Number of Outputs	Control Features	Size / Dimension [y]	Size / Dimension [z]	Supplier Device Package	Current - Output (Max)	Approval Agency	Standard Number

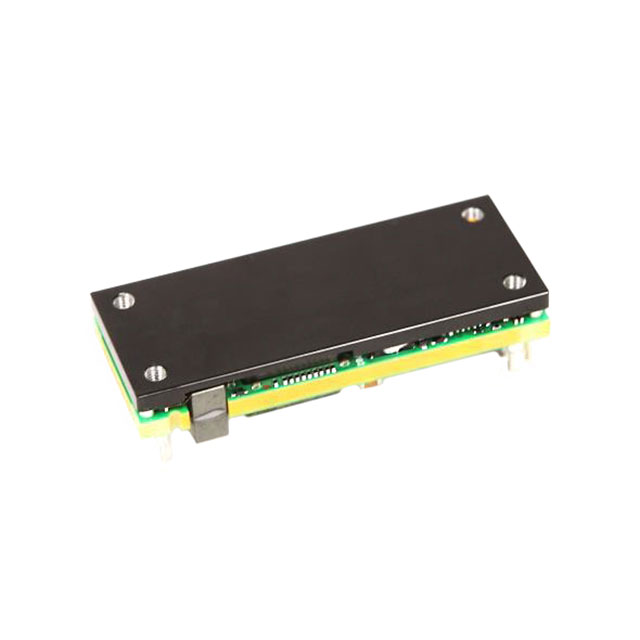

Delta Electronics E48SC12025NRFH	25 A	ITE (Commercial)	Through Hole	22.9 mm	0.5 in	58.4 mm	2.3 in	12.7 mm	0.9 in	36 V	1.5 kV	OCP OTP OVP Remote On/Off UVLO	13-DIP Module 1/8 Brick	300 W	95 %	75 V	12 V	85 °C	-40 C	Isolated Module Digital	1	Active Low Enable

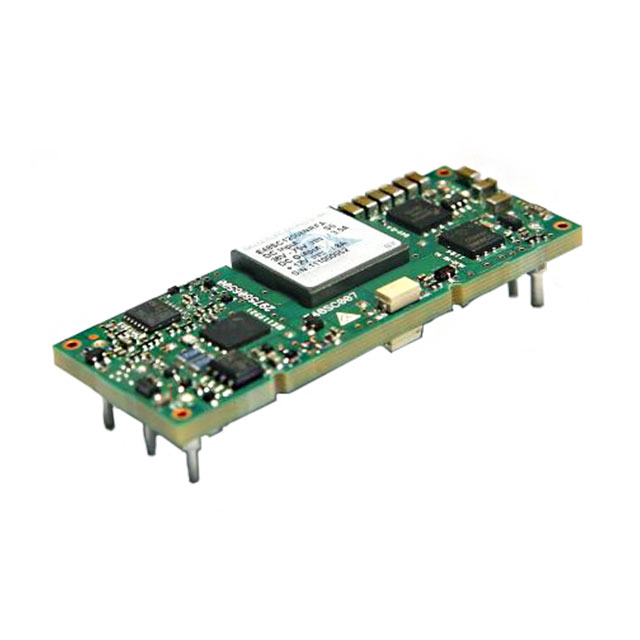

Delta Electronics E48SC12010NRFA	10 A	ITE (Commercial)	Through Hole		0.33 in	58.4 mm	2.3 in		0.9 in	36 V	2250 VDC	OCP OTP OVP Remote On/Off UVLO	8-DIP Module 1/8 Brick	120 W	91.7 %	75 V	12 V	85 °C	-40 C	Isolated Module	1	Active Low Enable	22.9 mm	8.4 mm

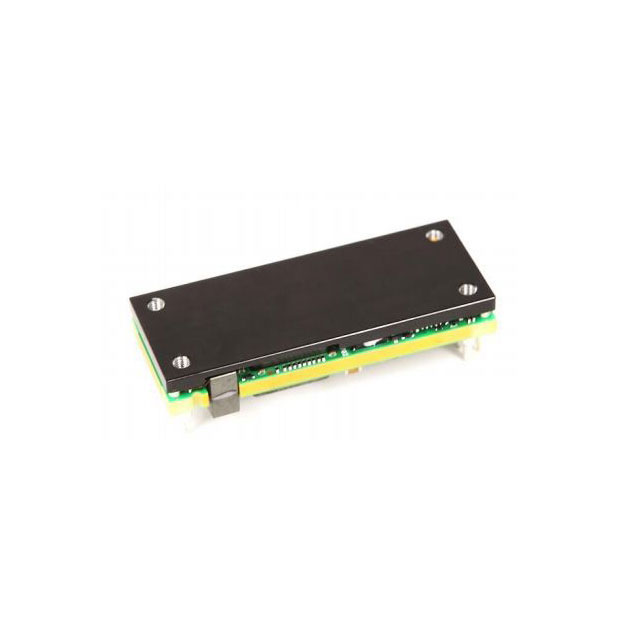

Delta Electronics E48SC32009NRAH	9.4 A	ITE (Commercial)	Through Hole	22.8 mm	0.5 in	58.4 mm	2.3 in	12.7 mm	0.9 in	36 V	2250 VDC	OCP OTP OVP Remote On/Off UVLO	Eighth Brick	301 W	95 %	72 V	32 V	85 °C	-40 C	Isolated Module	1				Eighth Brick
Delta Electronics E48SC12005NNFA		ITE (Commercial)	Through Hole		0.33 in	58.4 mm	2.3 in		0.9 in	36 V	2250 VDC	OCP OTP OVP Remote On/Off UVLO	8-DIP Module 1/8 Brick	60 W	92 %	75 V	12 V	117 °C	-40 C	Isolated Module	1	Active Low Enable	22.9 mm	8.4 mm		5 A
Delta Electronics E48SC50006NRAH	6 A	ITE (Commercial)	Through Hole	22.8 mm	0.5 in	58.4 mm	2.3 in	12.7 mm	0.9 in	36 V		Adjustable Output Heat Sink Remote On/Off Remote Sense	Eighth Brick	300 W	94.2 %	72 V	50 V	85 °C	-40 C	Isolated Module	1	Active Low Enable			Eighth Brick
Delta Electronics E48SC32005NRAA		ITE (Commercial)	Through Hole		0.41 in	58.4 mm	2.3 in		0.9 in	36 V	2250 VDC	OCP OTP OVP Remote On/Off UVLO	Eighth Brick	160 W	95 %	72 V	32 V	85 °C	-40 C	Isolated Module	1		22.8 mm	10.5 mm	Eighth Brick	5 A
Delta Electronics E48SC32009NRAA	9.4 A	ITE (Commercial)	Through Hole		0.41 in	58.4 mm	2.3 in		0.9 in	36 V	2250 VDC	OCP OTP OVP Remote On/Off UVLO	Eighth Brick	301 W	95 %	72 V	32 V	85 °C	-40 C	Isolated Module	1		22.8 mm	10.5 mm	Eighth Brick

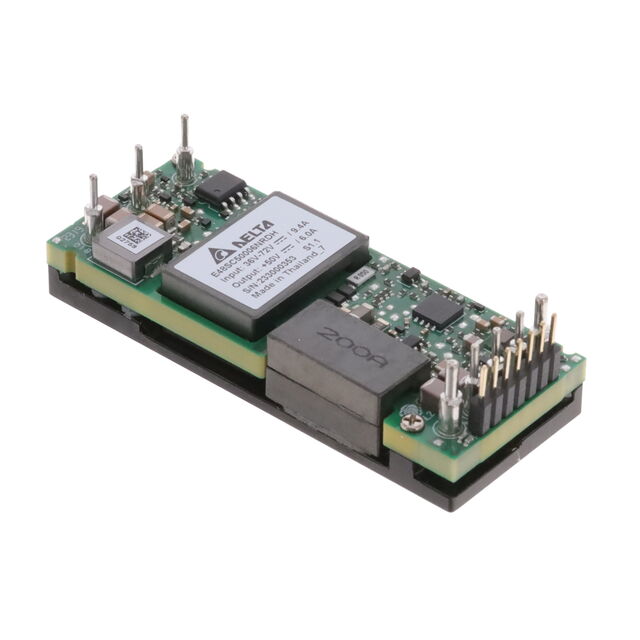

Delta Electronics E48SC50006NRDH	6 A	ITE (Commercial)	Through Hole	22.8 mm	0.5 in	58.4 mm	2.3 in	12.7 mm	0.9 in	36 V	2250 VDC	Adjustable Output PMBus™ Remote On/Off Remote Sense	Eighth Brick	300 W	94.7 %	72 V	50 V	85 °C	-40 °C	Isolated Module	1	Active Low Enable			Eighth Brick		CSA EN IEC UL	60950-1 62368-1
Delta Electronics E48SC3R315NRFA	15 A	ITE (Commercial)	Through Hole		0.35 in	58.4 mm	2.3 in		0.9 in	36 V	1.5 kV	OCP OTP OVP Remote On/Off UVLO	8-DIP Module 1/8 Brick	50 W	91 %	75 V	3.3 V	113 °C	-40 C	Isolated Module	1	Active Low Enable	22.8 mm	9 mm
Delta Electronics E48SC05015NRFA	15 A	ITE (Commercial)	Through Hole		0.33 in	58.4 mm	2.3 in		0.9 in	36 V	1.5 kV	OCP OTP OVP Remote On/Off UVLO	8-DIP Module 1/8 Brick	83 W	91 %	75 V	5 V	113 °C	-40 C	Isolated Module	1	Active Low Enable	22.9 mm	8.4 mm
