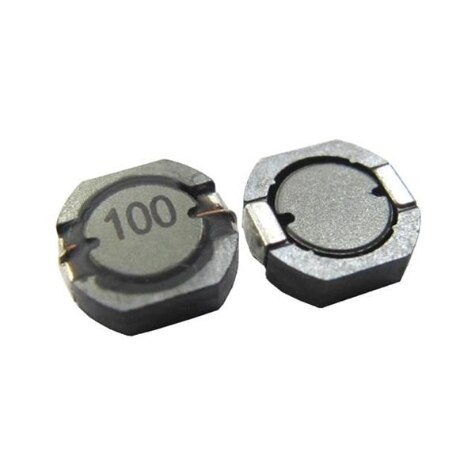

APSR Series
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Manufacturer: Pulse Electronics
Catalog
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Beta
⌘K
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
| Part | Mounting Type | Current Rating | Package / Case | Material - Core | DC Resistance (DCR) (Max) | Height - Seated (Max) | Size / Dimension Length | Size / Dimension Width | Type | Operating Temperature (Max) | Operating Temperature (Min) | Inductance Frequency - Test | Ratings | Shielding | Inductance | Tolerance | Current - Saturation (Isat) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Surface Mount | 1.9 A | Nonstandard | Ferrite | 140 mOhm | 0.157 in | 0.362 in | 0.291 in | Drum Core Wirewound | 125 °C | -40 °C | 100 kHz | AEC-Q200 | Shielded | 33 µH | 20 % | 1.4 A |
 Pulse Electronics | Surface Mount | 1.51 A | Nonstandard | Ferrite | 160 mOhm | 0.087 in | 0.244 in | 0.197 in | Drum Core Wirewound | 125 °C | -40 °C | 100 kHz | AEC-Q200 | Shielded | 10 µH | 20 % | 1.4 A |
Pulse Electronics | Surface Mount | 2.7 A | Nonstandard | Ferrite | 66.3 mOhm | 0.098 in | 0.343 in | 0.291 in | Drum Core Wirewound | 125 °C | -40 °C | 100 kHz | AEC-Q200 | Shielded | 6.8 µH | 20 % | 1.32 A |
