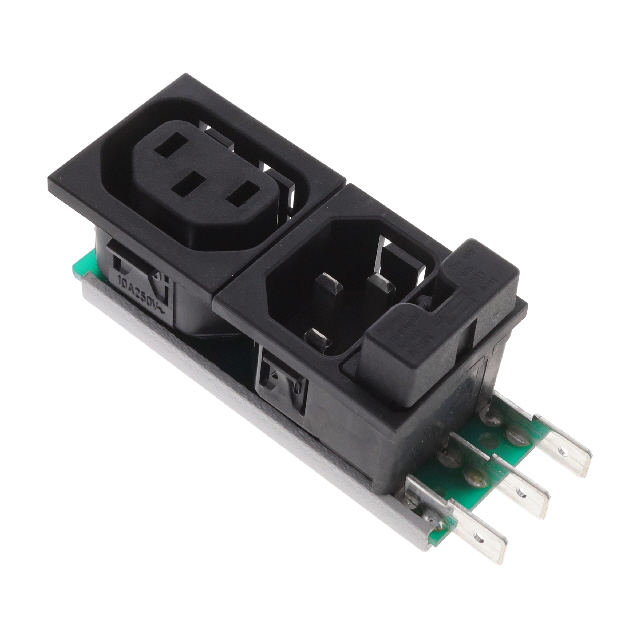

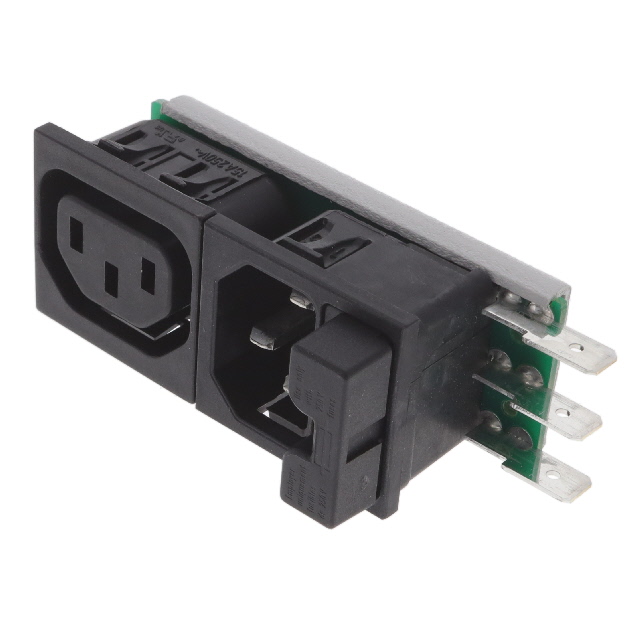

6423.0153 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
PWR ENT IN/OUT IEC320-2-2F PNL
| Part | Termination | Termination | Termination | Material Flammability Rating | Current Rating - Appliance Inlet | Accomodates a Fuse | Number of Positions | Filter Type | Approval Agency | Panel Thickness | Panel Thickness | Voltage Rating - Appliance Inlet | Connector Style | Mounting Type | Connector Type | Fuse Holder, Drawer | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 6.3 mm | Quick Connect | 0.25 " | UL94 V-0 | 10 A | 3 | Unfiltered - Commercial | CSA ENEC UL | 1.5 mm | 0.059 in | 250 VAC | IEC 320-2-2/F IEC 320-C14 | Panel Mount Snap-In | Receptacle Female Sockets Receptacle Male Blades | Fuse Holder | 65.5 mm | 27.6 mm | |
 SCHURTER Inc. | 6.3 mm | Quick Connect | 0.25 " | UL94 V-0 | 10 A | 3 | Unfiltered - Commercial | CSA ENEC UL | 2 mm | 0.079 in | 250 VAC | IEC 320-2-2/F IEC 320-C14 | Panel Mount Snap-In | Receptacle Female Sockets Receptacle Male Blades | Fuse Holder | 65.5 mm | 27.6 mm |
