133-03 Series

Catalog

CABLE MOUNTING & ACCESSORIES TUBE AND PIPE CLIP WITH 6.5MM ARROWHEAD, 4.7-5.1MM DIAMETER, PA66HIRHS, BLACK, 4000/CTN

Part	Panel Thickness [Max]	Panel Thickness [Min]	Mounting Type	Width [x]	Width [x]	Type	Material	Height	Height	Material Flammability Rating	Opening Size [Max]	Opening Size [Max]	Opening Size [Min]	Opening Size [Min]	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Max]	Color	Length	Length	Type Attributes	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Panel Thickness [Min]	Panel Thickness [Max]	Features	Panel Hole Size	Length [x]	Length [x]	Height [z]	Height [z]

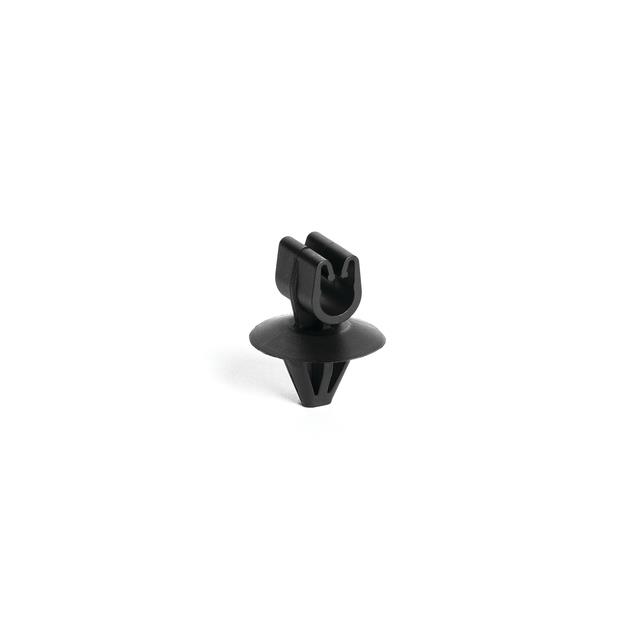

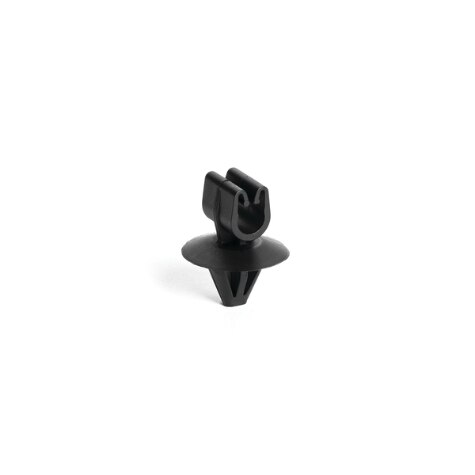

HELLERMANNTYTON 133-03178	0.06 " 1.52 mm	1.27 mm	Arrowhead	10 mm	0.394 "	Clip C-Type	Polyamide (PA66) Nylon 6/6	21.8 mm	0.86 in	UL94 HB	5.1 mm	0.201 in	0.185 in	4.7 mm	0.24 in	6.9 mm	6.1 mm	0.272 in	Black	0.67 in	17.02 mm	Open

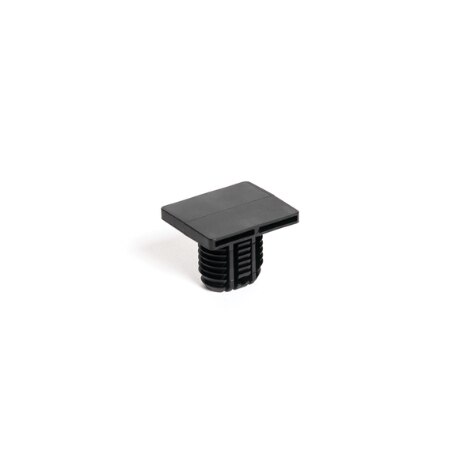

HELLERMANNTYTON 133-03691						Retaining Clip													Black				0.47 "	17 mm	12 mm	0.67 "

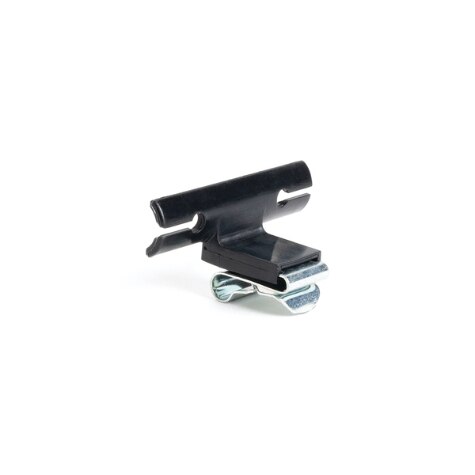

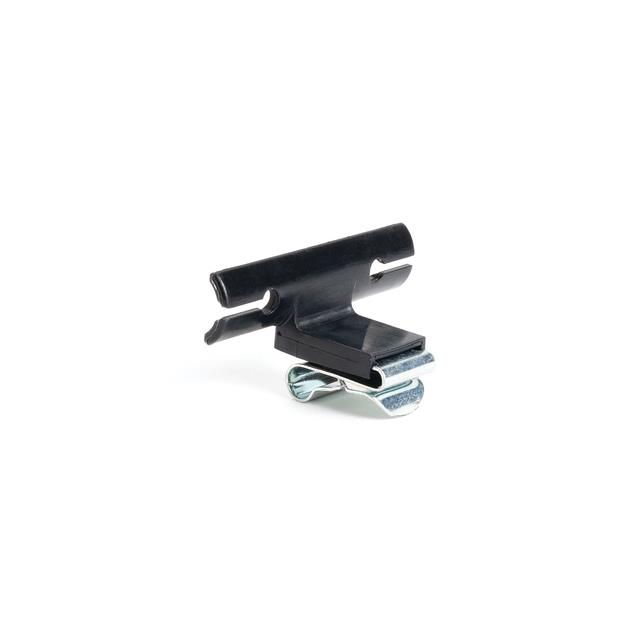

HELLERMANNTYTON 133-03524	0.08 in	0.03 in	Clip On Edge Mount	9.91 mm	0.39 "	Clip Bundling	Polyamide (PA66) Nylon 6/6	7.62 mm	0.3 in										Black	0.59 in	14.99 mm						0.76 mm	2.03 mm	Heat Stabilized Impact Modified UV Stabilized

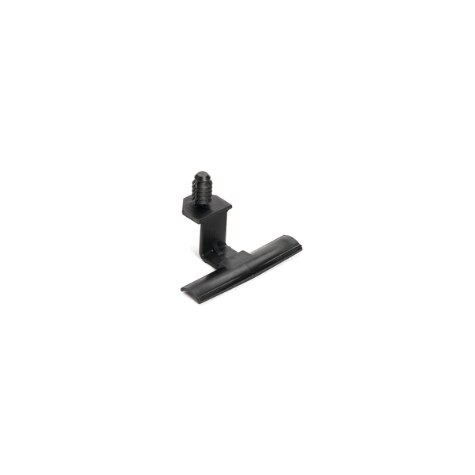

HELLERMANNTYTON 133-03836			Fir Tree	35.56 mm	1.4 in	Clip Bundling	Polyamide (PA66) Nylon 6/6								0.24 in			0.27 in	Black										Heat Stabilized Impact Modified	6.1 mm 6.86 mm	2.04 in	51.82 mm	30.48 mm	1.2 in
