4212N Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

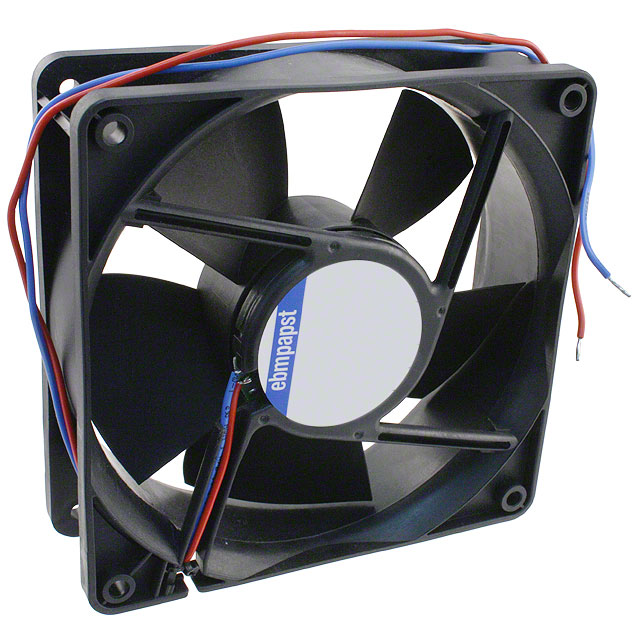

FAN AXIAL 119X38MM 12VDC WIRE
| Part | Material - Frame | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Width [y] | Bearing Type | Operating Temperature [Min] | Operating Temperature [Max] | RPM | Power (Watts) | Fan Type | Termination | Voltage - Rated | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Weight [custom] | Weight [custom] | Air Flow | Air Flow | Noise | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 7 V | 14.5 VDC | 40 °C 60000 Hrs | 38 mm | Sintec | -20 ░C | 70 °C | 2750 RPM | 4.3 W | Tubeaxial | 2 Wire Leads | 12 VDC | Square | 119 mm | 119 mm | 0.507 lb | 229.97 g | 97 CFM | 2.72 m³/min | 42 dB | |
ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 7 V | 14.5 VDC | 80000 Hrs | 38 mm | Sintec | -20 ░C | 70 °C | 1700 RPM | 1.4 W | Tubeaxial | 2 Wire Leads | 12 VDC | Square | 119 mm | 119 mm | 0.507 lb | 229.97 g | 59 CFM | 1.65 mł/min | 28 dB | CE CSA UL VDE |
ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 7 V | 14.5 VDC | 70000 Hrs | 38 mm | Sintec | -20 ░C | 70 °C | 2150 RPM | 2.3 W | Tubeaxial | 2 Wire Leads | 12 VDC | Square | 119 mm | 119 mm | 0.507 lb | 229.97 g | 75 CFM | 2.1 m³/min | 35 dB | CE CSA UL VDE |
