M1234 Series

Catalog

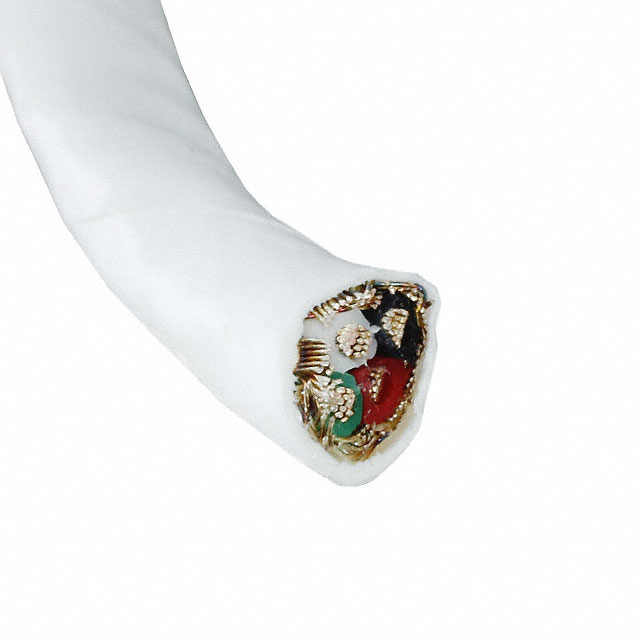

CABLE 4COND 20AWG WHT SHLD 3000'

Part	Shield Material	Shield Coverage	Cable Type	Jacket Color	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Shield Type	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Number of Conductors	Wire Gauge	Conductor Material	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
ALPHA WIRE M1234 WH199	Copper Silver Coated	85 %	Multi-Conductor	White	Polytetrafluoroethylene (PTFE)	0.186 "	4.72 mm	200 °C	-55 C	Braid	Polytetrafluoroethylene (PTFE)	19	32 AWG	600 V	4	20 AWG	Copper Tinned	914.4 m	3000 '	0.0118 in	0.3 mm
ALPHA WIRE M1234 WH001	Copper Silver Coated	85 %	Multi-Conductor	White	Polytetrafluoroethylene (PTFE)	0.186 "	4.72 mm	200 °C	-55 C	Braid	Polytetrafluoroethylene (PTFE)	19	32 AWG	600 V	4	20 AWG	Copper Tinned	304.8 m	1000 ft	0.0118 in	0.3 mm
ALPHA WIRE M1234 WH002	Copper Silver Coated	85 %	Multi-Conductor	White	Polytetrafluoroethylene (PTFE)	0.186 "	4.72 mm	200 °C	-55 C	Braid	Polytetrafluoroethylene (PTFE)	19	32 AWG	600 V	4	20 AWG	Copper Tinned	152.4 m	500 ft	0.0118 in	0.3 mm
