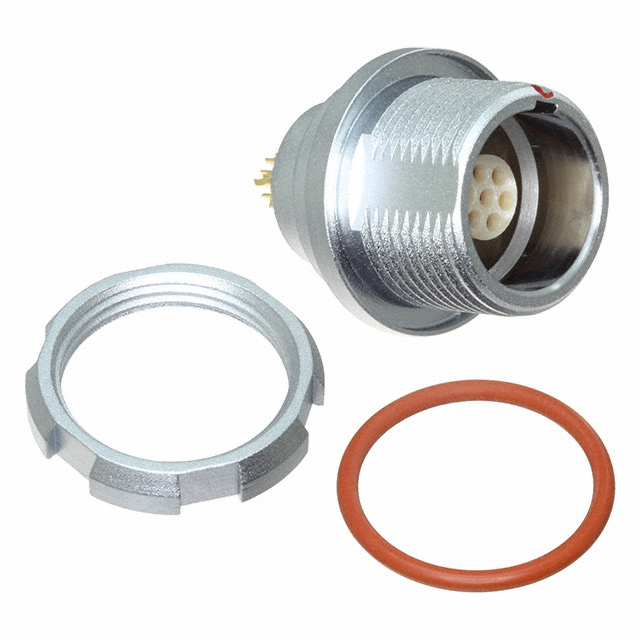

G30K0C-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 4P GOLD SLDR CUP
| Part | Fastening Type | Shell Material | Ingress Protection | Primary Material | Mounting Type | Shell Size - Insert [custom] | Contact Material | Number of Positions | Orientation | Current Rating (Amps) | Color | Contact Finish - Mating | Shell Finish | Insert Material | Shielding | Connector Type | Applications | Mounting Feature | Features | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Push-Pull | Brass | IP68 - Dust Tight Waterproof | Metal | Panel Mount | 0 | Brass | 4 | 0 | 7.5 A | Silver | Gold | Chrome over Nickel | Polyetheretherketone (PEEK) | Shielded | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Bulkhead - Front Side Nut | Ground | 120 °C | -40 C | |||
Push-Pull | Brass | IP68 - Dust Tight Waterproof | Metal | Panel Mount | 0 | Brass | 7 | 0 | 4 A | Silver | Gold | Chrome over Nickel | Polyetheretherketone (PEEK) | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Bulkhead - Front Side Nut | Ground | 120 °C | -40 C | ||||
Push-Pull | Brass | IP68 - Dust Tight Waterproof | Metal | Panel Mount Through Hole | 0 | Brass | 5 | 0 | 6 A | Silver | Gold | Chrome over Nickel | Polyetheretherketone (PEEK) | Shielded | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Bulkhead - Front Side Nut | Ground | 120 °C | -40 C | Solder | 366 V | |
Push-Pull | Brass | IP68 - Dust Tight Waterproof | Metal | Panel Mount Through Hole | 0 | Brass | 9 | 0 | 4 A | Silver | Gold | Chrome over Nickel | Polyetheretherketone (PEEK) | Shielded | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Bulkhead - Front Side Nut | Ground | 120 °C | -40 C | Solder | 200 V | |

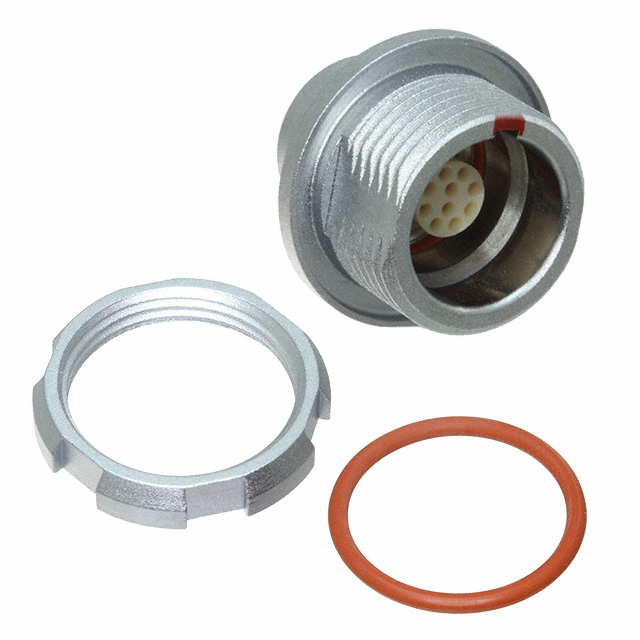

Push-Pull | Brass | IP68 - Dust Tight Waterproof | Metal | Panel Mount | 0 | Brass | 10 | 0 | 4 A | Silver | Gold | Chrome over Nickel | Polyetheretherketone (PEEK) | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Bulkhead - Front Side Nut | Ground | 120 °C | -40 C | ||||
Push-Pull | Brass | IP68 - Dust Tight Waterproof | Metal | Panel Mount Through Hole | 0 | Brass | 0 | 7.5 A | Silver | Gold | Chrome over Nickel | Polyetheretherketone (PEEK) | Shielded | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Bulkhead - Front Side Nut | Ground | 120 °C | -40 C | Solder | 200 V | ||
Push-Pull | Brass | IP68 - Dust Tight Waterproof | Metal | Panel Mount Through Hole | 0 | Brass | 6 | 0 | 4 A | Silver | Gold | Chrome over Nickel | Polyetheretherketone (PEEK) | Shielded | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Bulkhead - Front Side Nut | Ground | 120 °C | -40 C | Solder | 300 VDC | |
Push-Pull | Brass | IP68 - Dust Tight Waterproof | Metal | Panel Mount Through Hole | 0 | Brass | 4 | 0 | 6 A | Silver | Gold | Chrome over Nickel | Polyetheretherketone (PEEK) | Shielded | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Bulkhead - Front Side Nut | Ground | 120 °C | -40 C | Solder | 300 VDC | |
Push-Pull | Brass | IP68 - Dust Tight Waterproof | Metal | Panel Mount | 0 | Brass | 6 | 0 | 4 A | Silver | Gold | Chrome over Nickel | Polyetheretherketone (PEEK) | Shielded | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Bulkhead - Front Side Nut | Ground | 120 °C | -40 C | |||
Detent Lock Push-Pull | Brass | IP68 - Dust Tight Waterproof | Metal | Panel Mount | 0 | 0 | 7.5 A | Silver | Gold | Chrome | Shielded | Receptacle Female Sockets | Bulkhead - Front Side Nut | 120 °C | -40 C | Solder |
