090325 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 14POS 1.27MM

Part	Insulation Height [z]	Insulation Height [z]	Contact Shape	Shrouding	Voltage Rating	Insulation Material	Style	Contact Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Length - Post	Contact Length - Post	Termination	Current Rating (Amps)	Contact Finish - Mating	Applications	Insulation Color	Contact Material	Number of Positions Loaded	Material Flammability Rating	Number of Rows	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Positions
Molex 0903253014	6.4 mm	0.252 in	Rectangular	Shrouded - 2 Wall	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Board to Cable/Wire	Male Blade	0.05 in	1.27 mm	-40 °C	105 ░C	14	0.13 in	3.3 mm	Solder	1.2 A	Palladium-Nickel	Automotive General Purpose Industrial Medical	Black	Brass	All	UL94 V-0	1	Header	24 µin	0.61 µm	Push-Pull	Through Hole

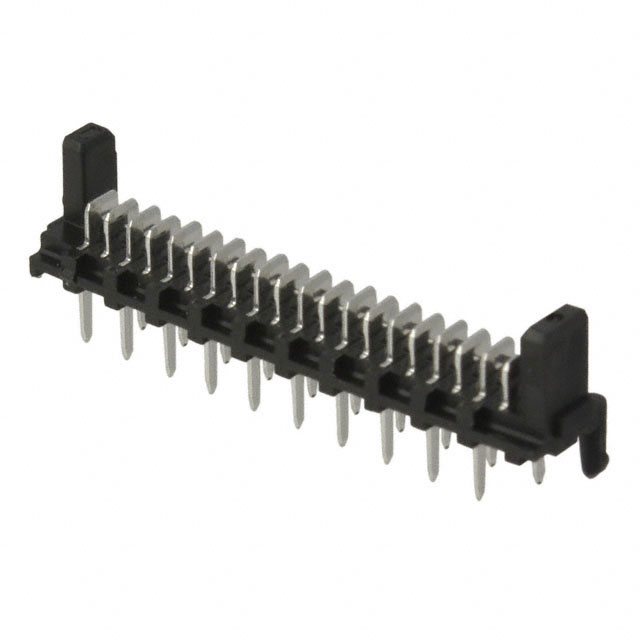

Molex 0903250020	6.4 mm	0.252 in	Rectangular	Shrouded - 2 Wall	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Board to Cable/Wire	Male Blade	0.05 in	1.27 mm	-40 °C	105 ░C	20	0.13 in	3.3 mm	Solder	1.2 A		Automotive General Purpose Industrial Medical	Black	Brass	All	UL94 V-0	1	Header		118.1 µin	Push-Pull	Through Hole	3 µm	Tin

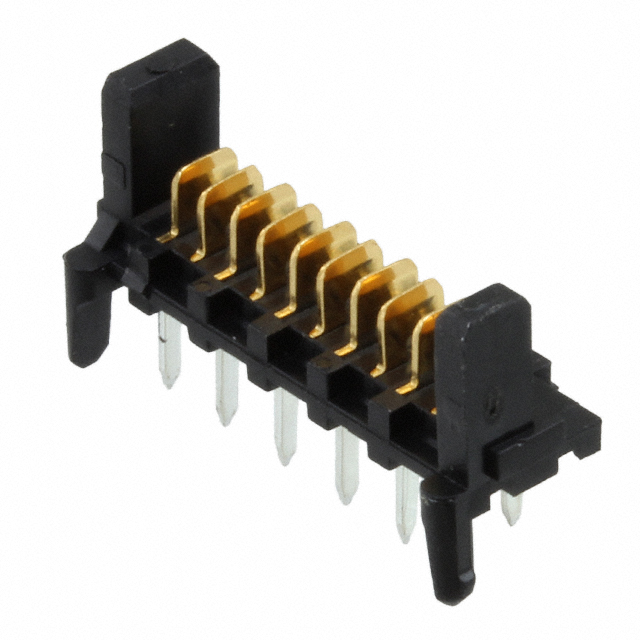

Molex 0903253010	6.4 mm	0.252 in	Rectangular	Shrouded - 2 Wall	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Board to Cable/Wire	Male Blade	0.05 in	1.27 mm	-40 °C	105 ░C	10	0.13 in	3.3 mm	Solder	1.2 A	Palladium-Nickel	Automotive General Purpose Industrial Medical	Black	Brass	All	UL94 V-0	1	Header	24 µin	0.61 µm	Push-Pull	Through Hole
Molex 0903253022	6.4 mm	0.252 in	Rectangular	Shrouded - 2 Wall	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Board to Cable/Wire	Male Blade	0.05 in	1.27 mm	-40 °C	105 ░C	22 positions	0.13 in	3.3 mm	Solder	1.2 A	Palladium-Nickel	Automotive General Purpose Industrial Medical	Black	Brass	All	UL94 V-0	1	Header	24 µin	0.61 µm	Push-Pull	Through Hole

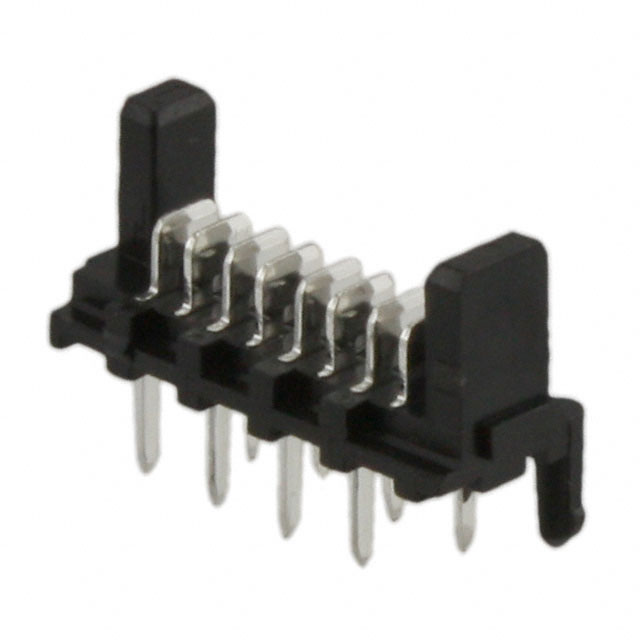

Molex 0903250008	6.4 mm	0.252 in	Rectangular	Shrouded - 2 Wall	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Board to Cable/Wire	Male Blade	0.05 in	1.27 mm	-40 °C	105 ░C	8	0.13 in	3.3 mm	Solder	1.2 A		Automotive General Purpose Industrial Medical	Black	Brass	All	UL94 V-0	1	Header		118.1 µin	Push-Pull	Through Hole	3 µm	Tin
Molex 0903250022	6.4 mm	0.252 in	Rectangular	Shrouded - 2 Wall	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Board to Cable/Wire	Male Blade	0.05 in	1.27 mm	-40 °C	105 ░C	22 positions	0.13 in	3.3 mm	Solder	1.2 A		Automotive General Purpose Industrial Medical	Black	Brass	All	UL94 V-0	1	Header		118.1 µin	Push-Pull	Through Hole	3 µm	Tin

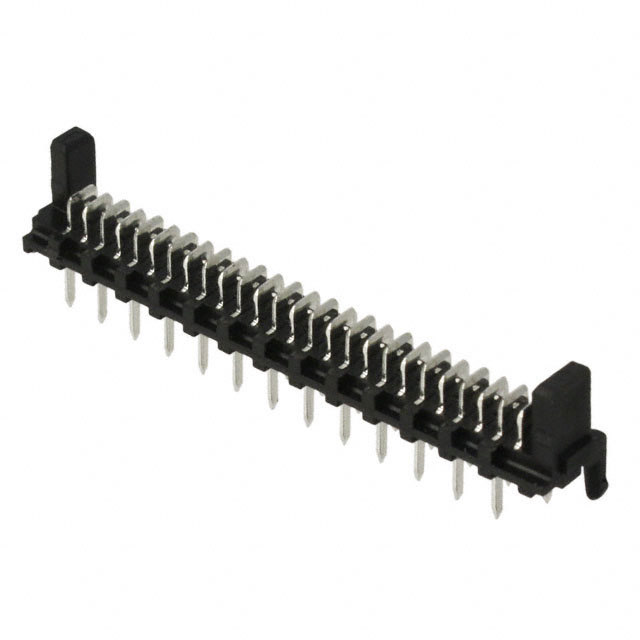

Molex 0903250026	6.4 mm	0.252 in	Rectangular	Shrouded - 2 Wall	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Board to Cable/Wire	Male Blade	0.05 in	1.27 mm	-40 °C	105 ░C	26	0.13 in	3.3 mm	Solder	1.2 A		Automotive General Purpose Industrial Medical	Black	Brass	All	UL94 V-0	1	Header		118.1 µin	Push-Pull	Through Hole	3 µm	Tin

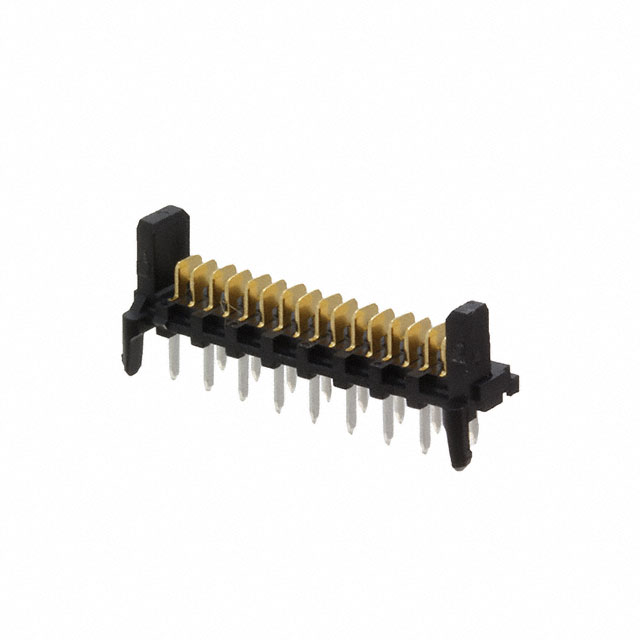

Molex 0903253016	6.4 mm	0.252 in	Rectangular	Shrouded - 2 Wall	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Board to Cable/Wire	Male Blade	0.05 in	1.27 mm	-40 °C	105 ░C		0.13 in	3.3 mm	Solder	1.2 A	Palladium-Nickel	Automotive General Purpose Industrial Medical	Black	Brass	All	UL94 V-0	1	Header	24 µin	0.61 µm	Push-Pull	Through Hole			16
Molex 0903253004	6.4 mm	0.252 in	Rectangular	Shrouded - 2 Wall	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Board to Cable/Wire	Male Blade	0.05 in	1.27 mm	-40 °C	105 ░C	4	0.13 in	3.3 mm	Solder	1.2 A	Palladium-Nickel	Automotive General Purpose Industrial Medical	Black	Brass	All	UL94 V-0	1	Header	24 µin	0.61 µm	Push-Pull	Through Hole

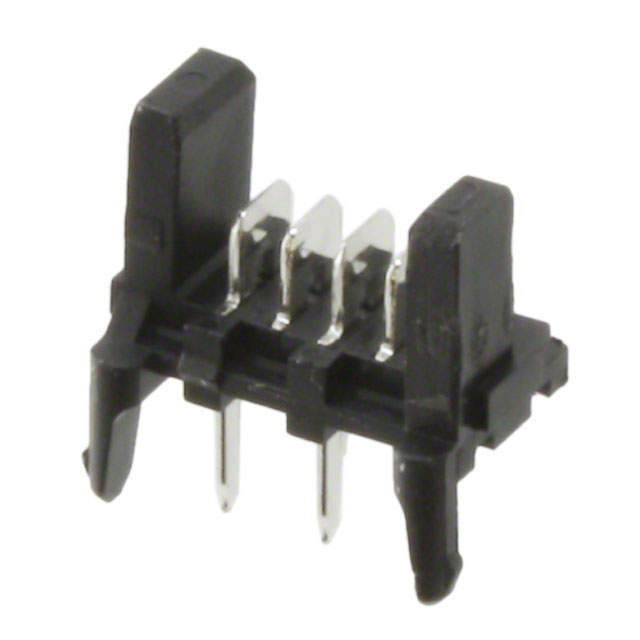

Molex 0903250004	6.4 mm	0.252 in	Rectangular	Shrouded - 2 Wall	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Board to Cable/Wire	Male Blade	0.05 in	1.27 mm	-40 °C	105 ░C	4	0.13 in	3.3 mm	Solder	1.2 A		Automotive General Purpose Industrial Medical	Black	Brass	All	UL94 V-0	1	Header		118.1 µin	Push-Pull	Through Hole	3 µm	Tin
