T 3329 Series

Catalog

CONN PLUG HSNG MALE 4POS INLINE

Part	Features	Shell Material	Connector Type	Material Flammability Rating	Mounting Type	Insert Material	Contact Size	Number of Positions	Shell Size - Insert	Orientation	Ingress Protection	Note	Housing Color	Shell Finish	Shielding	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Type	Fastening Type	Contact Finish - Mating	Primary Material	Voltage Rating	Color	Current Rating (Amps)

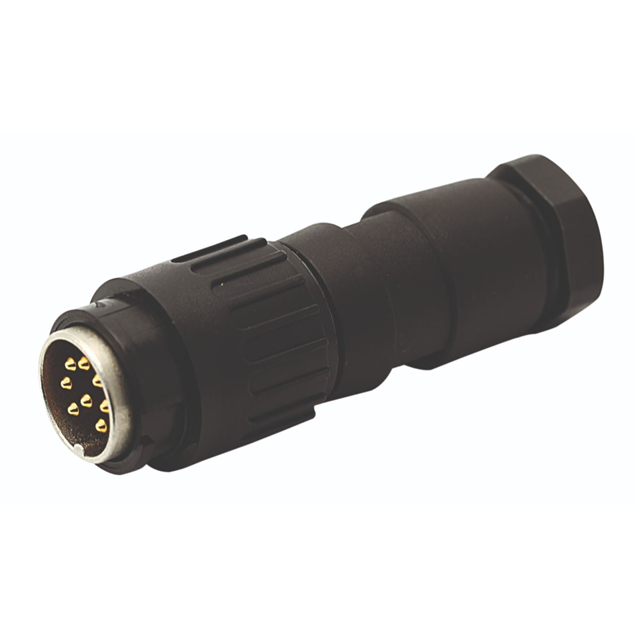

Amphenol Tuchel Industrial T 3329 552	Backshell Cable Clamp Coupling Nut	Die Cast	Plug Housing	UL94 V-0	Free Hanging (In-Line)	Thermoplastic	1.5 mm	4	M16-4	Keyed	IP40	Contacts Not Included	Black Silver	Nickel	Unshielded	Crimp	-40 C	100 °C	Circular	For Male Pins	Bayonet Lock

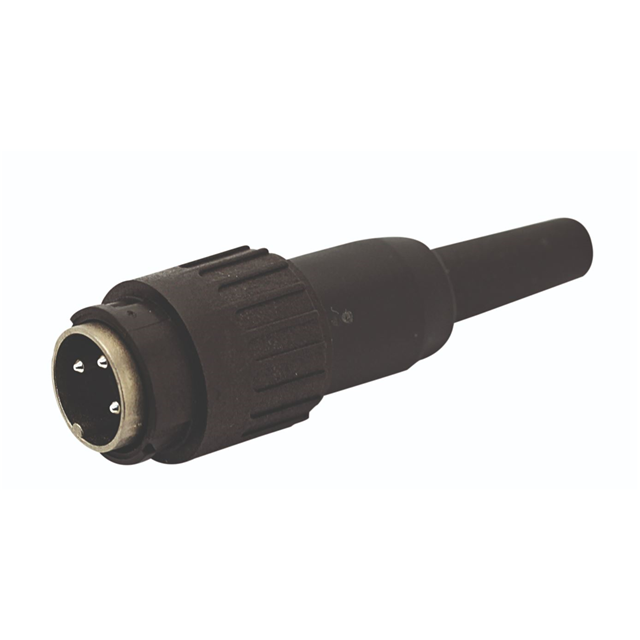

Amphenol Tuchel Industrial T 3329 551	Cable Clamp Coupling Nut Strain Relief	Die Cast	Plug Housing	UL94 V-0	Free Hanging (In-Line)	Thermoplastic	1.5 mm	4	M16-4	Keyed	IP40	Contacts Not Included	Black Silver	Nickel	Unshielded	Crimp	-40 C	100 °C	Circular	For Male Pins	Bayonet Lock

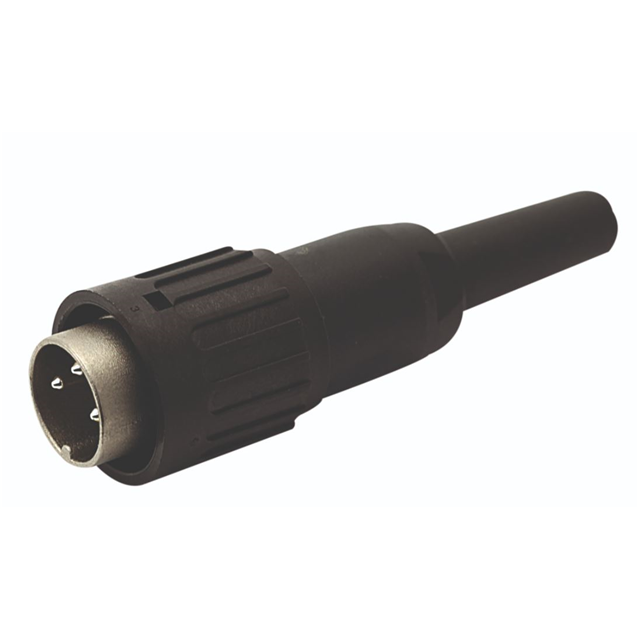

Amphenol Tuchel Industrial T 3329 501	Strain Relief	Die Cast	Plug Male Pins		Free Hanging (In-Line)			4	M16-4	Keyed	IP40			Nickel			-40 C	100 °C			Bayonet Lock	Silver	Metal	250 V	Silver	10 A
