T100116107 Series
Manufacturer: Astrodyne TDI
Beta
⌘K

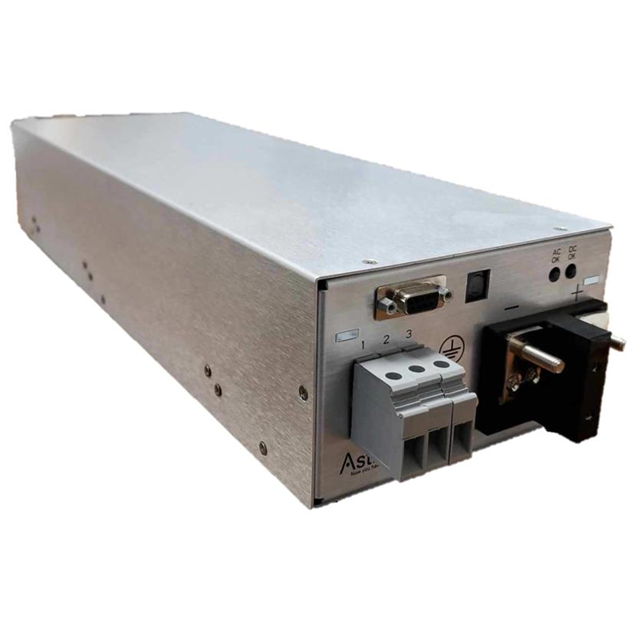

AC/DC CONVERTER RECTIFIER 5.5KW
| Part | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Features | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Applications | Approval Agency | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Type | Standard Number | Current - Output 1 | Number of Outputs | Efficiency | Voltage - Isolation | Voltage - Input [Max] | Voltage - Input [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Astrodyne TDI | 0 V | 60 V | Adjustable CC CP CV Modular Programmable Water Cooled Power Supply | 3.46 in | 87.9 mm | 19.67 in | 149.1 mm | 5.87 in | 499.6 mm | ITE (Commercial) | EN IEC UL | 5500 W | 50 °C | 5 °C | Enclosed | 61000-4 62368-1 | 120 A | 1 | 93 % | 6000 VDC | 480 VAC | 380 VAC | Rack Mount |
