D2808 Series
Manufacturer: Harwin Inc.
Beta
⌘K

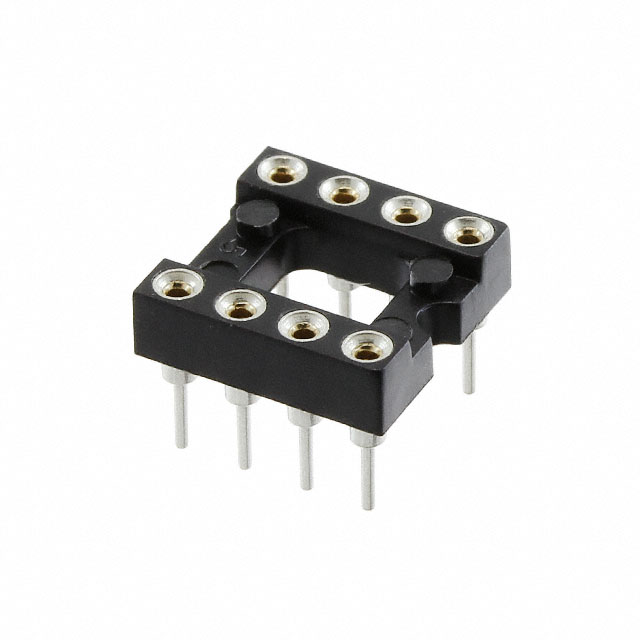

CONN IC DIP SOCKET 8POS GOLD
| Part | Material Flammability Rating | Termination Post Length [x] | Termination Post Length [x] | Contact Resistance | Current Rating (Amps) | Contact Material - Post [custom] | Termination | Type | Type | Type | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Housing Material | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Post | Pitch - Post | Contact Finish - Post | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Material - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Features | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | UL94 V-0 | 3.2 mm | 0.126 in | 10 mOhm | 1 A | Brass | Solder | 7.62 mm | 0.3 in | DIP | 8 | 2 | 4 | Plastic | Through Hole | 5 µm | 196.9 µin | 0.1 in | 2.54 mm | Tin | Gold | Flash | Beryllium Copper | -55 C | 125 °C | Open Frame | 0.1 " | 2.54 mm |
