DHU281 Series

Catalog

SWITCH PB SPDT 16A 125V

Part	Electrical Life	Voltage Rating - AC	Ingress Protection	Mounting Type	Switch Function	Color - Actuator/Cap	Actuator Type	Actuator Marking	Type	Panel Cutout Dimensions [diameter]	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Termination Style [custom]	Termination Style [custom]	Features	Current Rating (Amps)	Illumination Type, Color	Termination Style [y]	Termination Style [x]	Illumination Voltage (Nominal)
CIT Relay and Switch DHU281NASXZB	100000 Cycles	125 V	IP67 - Dust Tight Waterproof	Panel Mount Front	On-Mom	Silver	Button Flush Round	No Marking	Anti-Vandal	28 mm	SPDT	85 °C	-40 C	Quick Connect	0.11 in	0.25 in	Stainless Steel	16 A
CIT Relay and Switch DHU281LABXZB	100000 Cycles	125 V	IP67 - Dust Tight Waterproof	Panel Mount Front	On-On	Black	Button Flush Round	No Marking	Anti-Vandal	28 mm	SPDT	85 °C	-40 C	Quick Connect	0.11 in	0.25 in		16 A
CIT Relay and Switch DHU281NGBBNB	100000 Cycles	125 V	IP67 - Dust Tight Waterproof	Panel Mount Front	On-Mom	Black	Button Flush Round	No Marking	Anti-Vandal Illuminated	28 mm	SPDT	85 °C	-40 C	Quick Connect	0.11 in	0.25 in		16 A	Blue LED

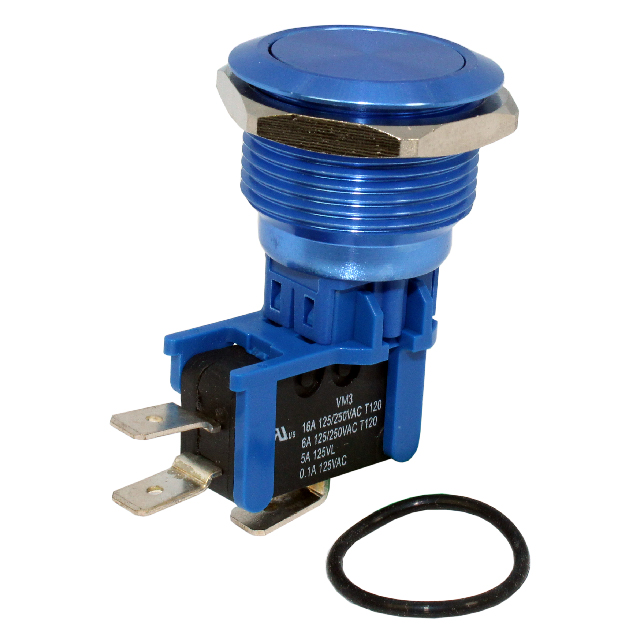

CIT Relay and Switch DHU281LAUXZB	100000 Cycles	125 V	IP67 - Dust Tight Waterproof	Panel Mount Front	On-On	Blue	Button Flush Round	No Marking	Anti-Vandal	28 mm	SPDT	85 °C	-40 C	Quick Connect	0.11 in	0.25 in		16 A
CIT Relay and Switch DHU281LBBBNB	100000 Cycles	125 V	IP67 - Dust Tight Waterproof	Panel Mount Front	On-On	Black	Button Flush Round	No Marking	Anti-Vandal Illuminated	28 mm	SPDT	85 °C	-40 C	Quick Connect	0.11 in	0.25 in		16 A	Blue LED
CIT Relay and Switch DHU281NBSB12A	100000 Cycles	125 V	IP67 - Dust Tight Waterproof	Panel Mount Front	On-Mom	Silver	Button Flush Round	No Marking	Anti-Vandal Illuminated	28 mm	SPDT	85 °C	-40 C	Quick Connect			Stainless Steel	16 A	Blue LED	0.187 in	0.11 in	12 VDC

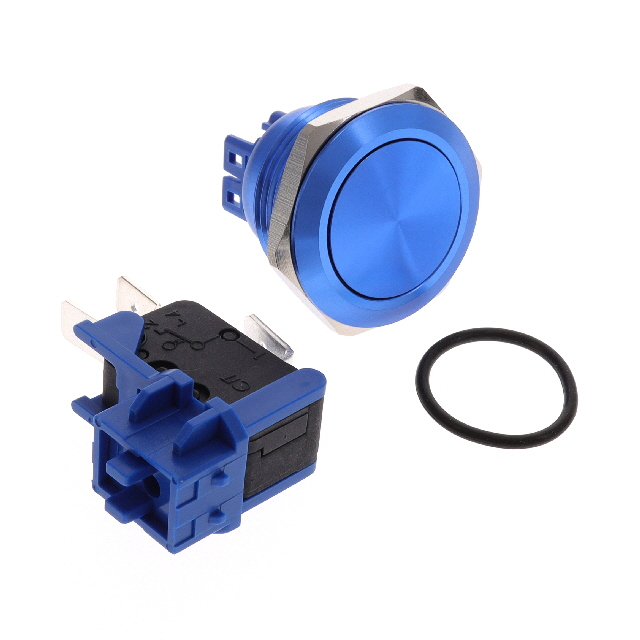

CIT Relay and Switch DHU281NAUXZB	100000 Cycles	125 V	IP67 - Dust Tight Waterproof	Panel Mount Front	On-Mom	Blue	Button Flush Round	No Marking	Anti-Vandal	28 mm	SPDT	85 °C	-40 C	Quick Connect	0.11 in	0.25 in		16 A
CIT Relay and Switch DHU281NBSR12A	100000 Cycles	125 V	IP67 - Dust Tight Waterproof	Panel Mount Front	On-Mom	Silver	Button Flush Round	No Marking	Anti-Vandal Illuminated	28 mm	SPDT	85 °C	-40 C	Quick Connect			Stainless Steel	16 A	LED Red	0.187 in	0.11 in	12 VDC
