50.625 Series

Catalog

CABLE GLAND 11-16MM M25 BRASS

Part	Color	Type	Ingress Protection	Includes	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min]	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min) [diameter]
Jacob GmbH 50.625 M	Silver	Cable Gland	IP68 - Dust Tight Waterproof	O-Ring Seal	M25x1.5	-40 C	100 °C	7 mm	0.276 "	0.63 in	16 mm	11 mm	0.433 in	Brass Nickel Plated
Jacob GmbH 50.625 Y/EMV	Silver	Cable Gland	IP68 - Dust Tight Waterproof	O-Ring Seal	M25x1.5	-40 C	100 °C	7 mm	0.276 "	0.63 in	16 mm	11 mm	0.433 in	Brass Nickel Plated

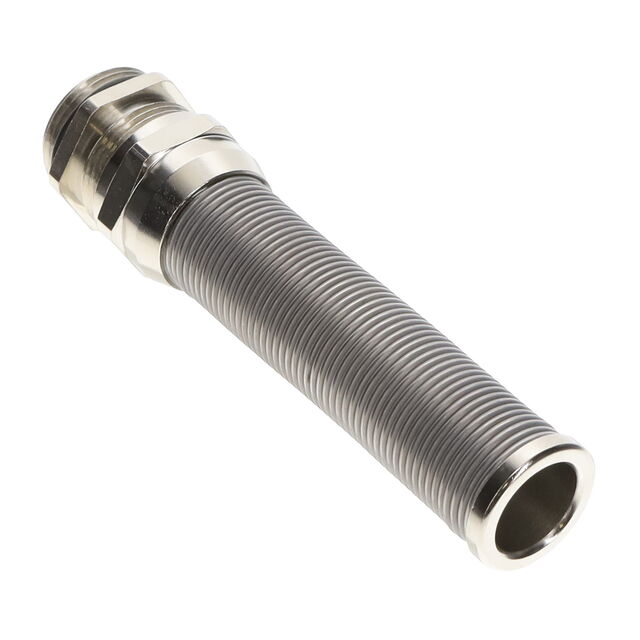

Jacob GmbH 50.625 M/BS	Silver	Cable Gland	IP68 - Dust Tight Waterproof	O-Ring Seal Strain Relief	M25x1.5	-20 ░C	100 °C	7 mm	0.276 "	0.63 in	16 mm	11 mm	0.433 in	Brass Nickel Plated
Jacob GmbH 50.625 ES	Silver	Cable Gland	IP68 - Dust Tight Waterproof	O-Ring Seal	M25x1.5	-40 C	100 °C	7 mm	0.276 "	0.63 in	16 mm	11 mm	0.433 in	Stainless Steel
Jacob GmbH 50.625 PA/FL	Gray	Cable Gland	IP68 - Dust Tight Waterproof	Sealing Ring	M25x1.5	-40 C	100 °C	8 mm	0.315 "		16.99 mm	11 mm	0.433 in		0.669 in

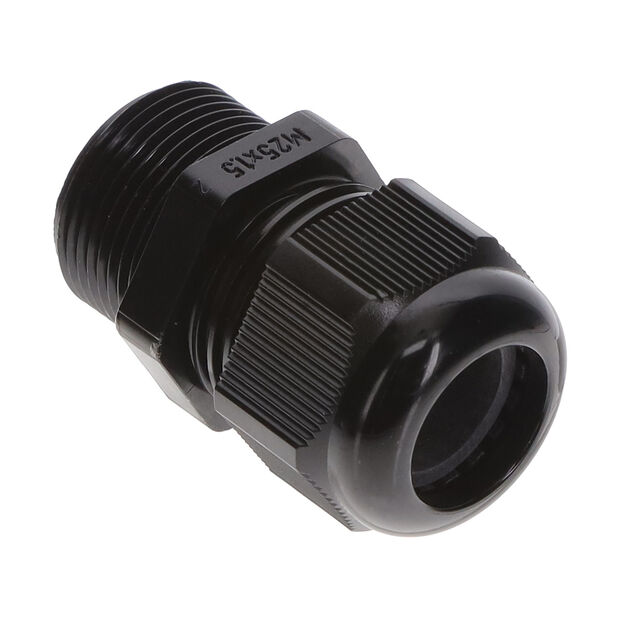

Jacob GmbH 50.625 PA/SWL	Black	Cable Gland	IP68 - Dust Tight Waterproof	Sealing Ring	M25x1.5	-40 C	100 °C	15 mm	0.591 in		16.99 mm	11 mm	0.433 in		0.669 in

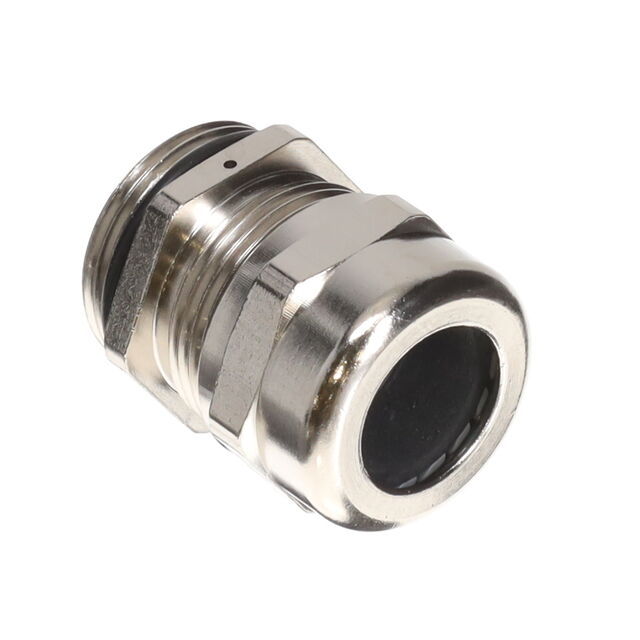

Jacob GmbH 50.625 M/AV	Silver	Cable Gland	IP66 IP68	O-Ring Seal	M25x1.5	-20 ░C	100 °C	7 mm	0.276 "	0.63 in	16 mm	11 mm	0.433 in	Brass Nickel Plated
Jacob GmbH 50.625 PA7035L	Gray	Cable Gland	IP68 - Dust Tight Waterproof	Sealing Ring	M25x1.5	-40 C	100 °C	15 mm	0.591 in		16.99 mm	11 mm	0.433 in		0.669 in

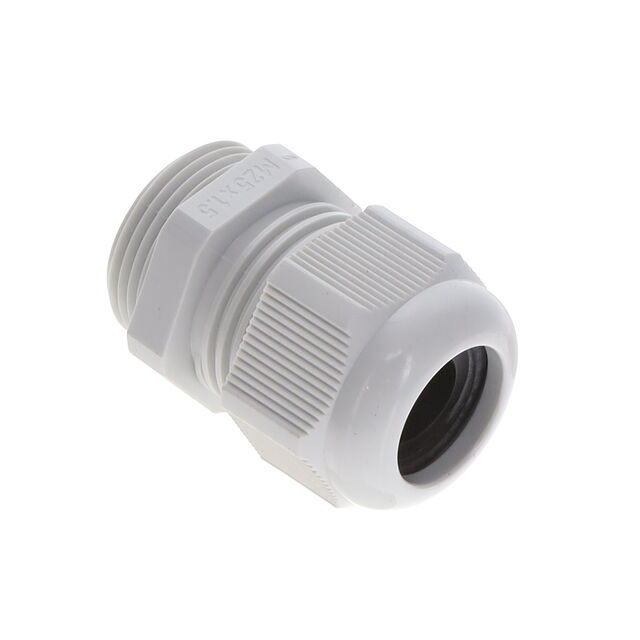

Jacob GmbH 50.625PA/R7035	Gray	Cable Gland	IP68 - Dust Tight Waterproof	Sealing Ring	M25x1.5	-40 C	100 °C	8 mm	0.315 "		16.99 mm				0.669 in	0.315 in	8 mm

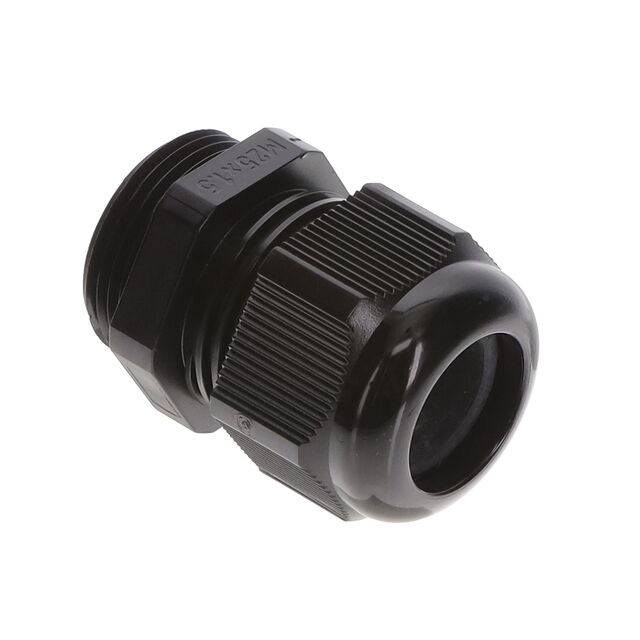

Jacob GmbH 50.625 PA/SW	Black	Cable Gland	IP68 - Dust Tight Waterproof	Sealing Ring	M25x1.5	-40 C	100 °C	8 mm	0.315 "		16.99 mm	11 mm	0.433 in		0.669 in
