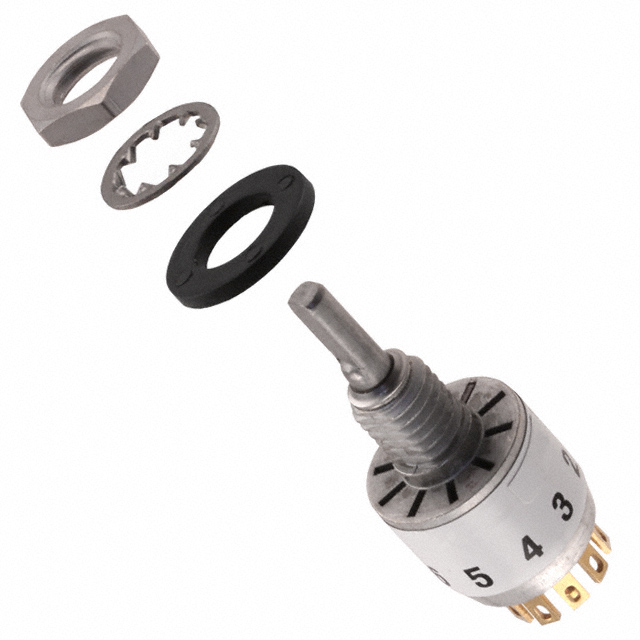

50D36 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
ELECTRICALSWITCH ROTARY NOTOVER5AMP
| Part | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Number of Poles per Deck | Mounting Type | Termination Style | Actuator Type | Voltage Rating - DC | Actuator Length [x] | Angle of Throw | Contact Finish | Current Rating (Amps) | Depth Behind Panel [custom] | Contact Timing | Number of Decks [custom] | Circuit per Deck | Index Stops | Number of Positions [Max] | Number of Positions [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 6.45 mm | 115 V | 1 | Panel Mount | Solder Lug | Flatted (3.17mm Dia) | 28 V | 9.53 mm | 36 ° | Gold | 150 mA 200 mA | 18.77 mm | Shorting (MBB) | 1 | SP10T | Adjustable | ||
Grayhill Inc. | 6.45 mm | 115 V | 1 | Panel Mount | Solder Lug | Flatted (3.17mm Dia) | 28 V | 9.53 mm | 36 ° | Gold | 150 mA 200 mA | 18.77 mm | Non-Shorting (BBM) | 1 | SP10T | Adjustable | ||
Grayhill Inc. | 6.45 mm | 115 V | 2 | Panel Mount | Solder Lug | Flatted (3.17mm Dia) | 28 V | 9.53 mm | 36 ° | Gold | 150 mA 200 mA | 18.77 mm | Shorting (MBB) | 1 | DP5T | Adjustable | 5 | 2 |
