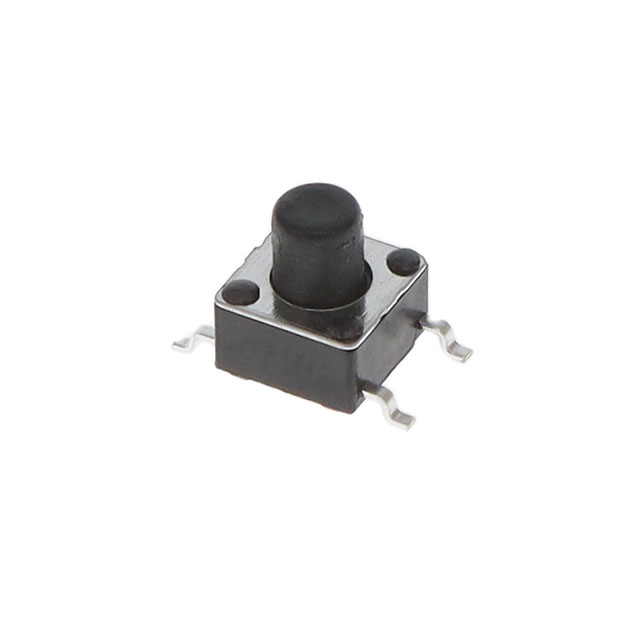

1301.9316 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Mechanical Life | Ingress Protection | Termination Style | Actuator Type | Features | Mounting Type | Switch Function | Operating Force | Actuator Height off PCB, Vertical [z] | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Outline [x] | Outline [y] | Actuator Orientation | Contact Rating @ Voltage | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.25 mm | 100000 Cycles | IP40 | Gull Wing | Standard | Tactile Feedback | Surface Mount | Off-Mom | 160 gf | 7 mm | SPST-NO | -20 ░C | 70 °C | 6 mm | 6 mm | Top Actuated | 0.05 A 12 VDC | Non-Illuminated |
