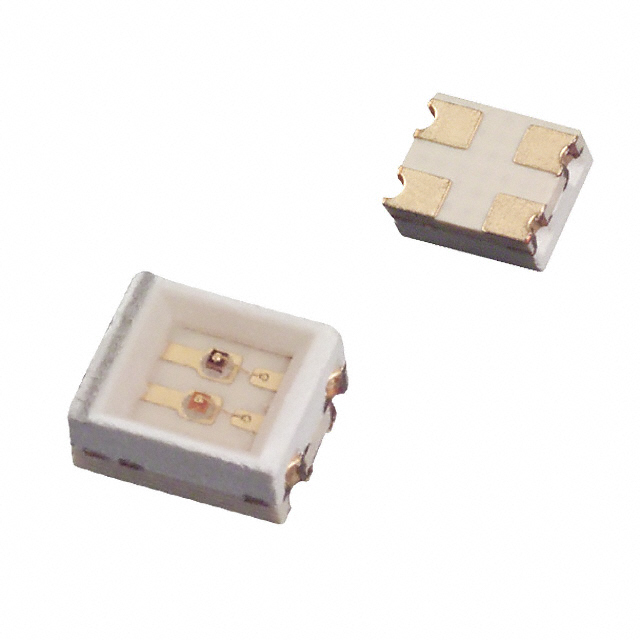

SML-020 Series

Bi-color surface emitting type, chip LED with reflector (Yellow-green/Orange)

Catalog

Bi-color surface emitting type, chip LED with reflector (Yellow-green/Orange)

Part	Wavelength - Peak	Height (Max) [z]	Color	Lens Color	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Current - Test	Lens Transparency	Configuration	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]	Mounting Type	Lens Size [x]	Lens Size [y]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Supplier Device Package	Millicandela Rating	Current - Test	Wavelength - Peak
Rohm Semiconductor SML-020PDTT87	555 nm 610 nm	1.5 mm	Green Orange	Colorless	1210	3225 Metric	2 V 2.2 V	20mA Green 20mA Orange	Clear	Independent	Rectangle with Flat Top	10 mcd	4 mcd	Surface Mount	2.3 mm	2.1 mm	3 mm	2.5 mm	3025 Metric	1210
Rohm Semiconductor SML-020MYTT86	570 nm 585 nm	1.5 mm	Green Yellow	Colorless	1210	3225 Metric	2.1 V 2.2 V		Clear	Independent	Rectangle with Flat Top			Surface Mount	2.3 mm	2.1 mm	3 mm	2.5 mm	3025 Metric	1210	6.3 mcd 20 mcd	20 mA 20 mA
Rohm Semiconductor SML-020MDTT86		1.5 mm	Green Orange	Colorless	1210	3225 Metric	2 V 2.2 V	20mA Green 20mA Orange	Clear	Independent	Rectangle with Flat Top	10 mcd	20 mcd	Surface Mount	2.3 mm	2.1 mm	3 mm	2.5 mm	3025 Metric	1210			570nm Green 610nm Orange

Bi-color surface emitting type, chip LED with reflector (Yellow-green/Orange)

SML-020 series is a reflector type surface mount LED.
