9008 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

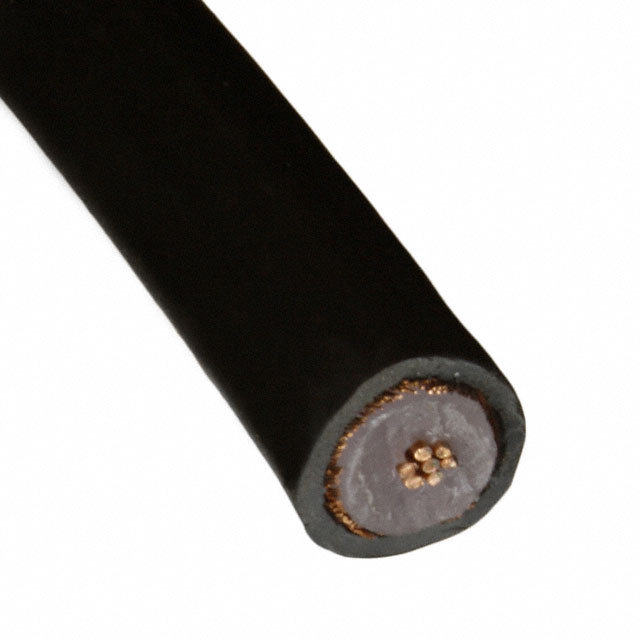

CABLE COAXIAL RG8 13AWG
| Part | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | Dielectric Material | VoP, Velocity of Propagation | Shield Coverage | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Cable Type | Jacket (Insulation) Material | Cable Group | Length [x] | Length [x] | Usage | Impedance | Wire Gauge | Jacket Color | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.285 in | 7.24 mm | Copper Bare | Solid Polyethylene (PE) | 66 | 96 % | Copper Bare | -20 ░C | 60 °C | 7 Strands 21 AWG | 10.29 mm | 0.405 " | Braid | Coaxial | Poly-Vinyl Chloride (PVC) | RG-8 | 152.4 m | 500 ft | Network | 52 Ohms | 2.88 mm² 13 AWG | Black | ||
ALPHA WIRE | 0.285 in | 7.24 mm | Copper Bare | Solid Polyethylene (PE) | 66 | 96 % | Copper Bare | -20 ░C | 60 °C | 7 Strands 21 AWG | 10.29 mm | 0.405 " | Braid | Coaxial | Poly-Vinyl Chloride (PVC) | RG-8 | Network | 52 Ohms | 2.88 mm² 13 AWG | Black | 100 ' | 30.48 m |
