102977 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 14POS 2.54MM

Part	Contact Finish - Post	Current Rating (Amps)	Contact Material	Connector Type	Contact Finish - Mating	Number of Positions Loaded	Contact Type	Insulation Color	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Fastening Type	Overall Contact Length	Overall Contact Length	Contact Shape	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Insulation Material	Mounting Type	Style	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Positions [custom]
TE Connectivity AMP Connectors 4-102977-0-07	Tin-Lead	3 A	Copper Alloy	Header Breakaway	Gold	All	Male Pin	Black	2	0.09 in	2.29 mm	Push-Pull	13.55 mm	0.533 in	Square	8.08 mm	0.318 in	0.1 "	2.54 mm	105 ░C	-65 ░C	0.1 in	2.54 mm	2.54 µm	100 µin	Unshrouded	0.125 in	3.18 mm	UL94 V-0	Thermoplastic	Through Hole	Board to Board Cable	14	0.76 Ám	30 Áin	Solder

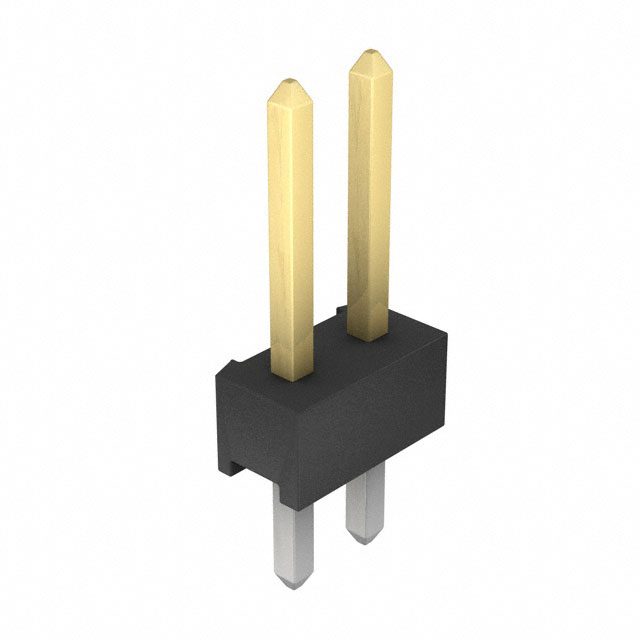

TE Connectivity AMP Connectors 4-102977-0-01	Tin-Lead	3 A	Copper Alloy	Header Breakaway	Gold	All	Male Pin	Black	2	0.09 in	2.29 mm	Push-Pull	13.55 mm	0.533 in	Square	8.08 mm	0.318 in			105 ░C	-65 ░C	0.1 in	2.54 mm	2.54 µm	100 µin	Unshrouded	0.125 in	3.18 mm	UL94 V-0	Thermoplastic	Through Hole	Board to Board Cable	2	0.76 Ám	30 Áin	Solder
TE Connectivity AMP Connectors 4-102977-0-09	Tin-Lead	3 A	Copper Alloy	Header Breakaway	Gold	All	Male Pin	Black	2	0.09 in	2.29 mm	Push-Pull	13.55 mm	0.533 in	Square	8.08 mm	0.318 in	0.1 "	2.54 mm	105 ░C	-65 ░C	0.1 in	2.54 mm	2.54 µm	100 µin	Unshrouded	0.125 in	3.18 mm	UL94 V-0	Thermoplastic	Through Hole	Board to Board Cable	18	0.76 Ám	30 Áin	Solder
TE Connectivity AMP Connectors 4-102977-0-35	Tin-Lead	3 A	Copper Alloy	Header Breakaway	Gold	All	Male Pin	Black	2	0.09 in	2.29 mm	Push-Pull	13.55 mm	0.533 in	Square	8.08 mm	0.318 in	0.1 "	2.54 mm	105 ░C	-65 ░C	0.1 in	2.54 mm	2.54 µm 2.54 m	100 µin 100 in	Unshrouded	0.125 in	3.18 mm	UL94 V-0	Thermoplastic	Through Hole	Board to Board Cable	70	0.76 m 0.76 Ám	30 in 30 Áin	Solder
TE Connectivity AMP Connectors 4-102977-0-17	Tin-Lead	3 A	Copper Alloy	Header Breakaway	Gold	All	Male Pin	Black	2	0.09 in	2.29 mm	Push-Pull	13.55 mm	0.533 in	Square	8.08 mm	0.318 in	0.1 "	2.54 mm	105 ░C	-65 ░C	0.1 in	2.54 mm	2.54 µm	100 µin	Unshrouded	0.125 in	3.18 mm	UL94 V-0	Thermoplastic	Through Hole	Board to Board Cable		0.76 Ám	30 Áin	Solder	34
TE Connectivity AMP Connectors 4-102977-0-13	Tin-Lead	3 A	Copper Alloy	Header Breakaway	Gold	All	Male Pin	Black	2	0.09 in	2.29 mm	Push-Pull	13.55 mm	0.533 in	Square	8.08 mm	0.318 in	0.1 "	2.54 mm	105 ░C	-65 ░C	0.1 in	2.54 mm	2.54 µm	100 µin	Unshrouded	0.125 in	3.18 mm	UL94 V-0	Thermoplastic	Through Hole	Board to Board Cable	26	0.76 Ám	30 Áin	Solder
TE Connectivity AMP Connectors 4-102977-0-28	Tin-Lead	3 A	Copper Alloy	Header Breakaway	Gold	All	Male Pin	Black	2	0.09 in	2.29 mm	Push-Pull	13.55 mm	0.533 in	Square	8.08 mm	0.318 in	0.1 "	2.54 mm	105 ░C	-65 ░C	0.1 in	2.54 mm	2.54 µm	100 µin	Unshrouded	0.125 in	3.18 mm	UL94 V-0	Thermoplastic	Through Hole	Board to Board Cable	56	0.76 Ám	30 Áin	Solder
TE Connectivity AMP Connectors 4-102977-0-11	Tin-Lead	3 A	Copper Alloy	Header Breakaway	Gold	All	Male Pin	Black	2	0.09 in	2.29 mm	Push-Pull	13.55 mm	0.533 in	Square	8.08 mm	0.318 in	0.1 "	2.54 mm	105 ░C	-65 ░C	0.1 in	2.54 mm	2.54 µm	100 µin	Unshrouded	0.125 in	3.18 mm	UL94 V-0	Thermoplastic	Through Hole	Board to Board Cable	22	0.76 Ám	30 Áin	Solder
TE Connectivity AMP Connectors 1-102977-2	Tin-Lead	3 A	Copper Alloy	Header Breakaway	Gold	All	Male Pin	Black	2	0.09 in	2.29 mm	Push-Pull	13.55 mm	0.533 in	Square	8.08 mm	0.318 in	0.1 "	2.54 mm	105 ░C	-65 ░C	0.1 in	2.54 mm	2.54 µm	100 µin	Unshrouded	0.125 in	3.18 mm	UL94 V-0	Thermoplastic	Through Hole	Board to Board Cable	24	0.76 Ám	30 Áin	Solder
TE Connectivity AMP Connectors 4-102977-0-05	Tin-Lead	3 A	Copper Alloy	Header Breakaway	Gold	All	Male Pin	Black	2	0.09 in	2.29 mm	Push-Pull	13.55 mm	0.533 in	Square	8.08 mm	0.318 in	0.1 "	2.54 mm	105 ░C	-65 ░C	0.1 in	2.54 mm	2.54 µm	100 µin	Unshrouded	0.125 in	3.18 mm	UL94 V-0	Thermoplastic	Through Hole	Board to Board Cable	10	0.76 Ám	30 Áin	Solder
