WLB32ZC570 Series

Catalog

WORK LIGHT STRIP 570MM

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Housing Material	Luminous Flux	Length [x]	Length [x]	Features	Ingress Protection	Lens Type	Approval Agency	Termination Style	Profile (W x H) [x]	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [y]	Illumination Color	Rated Life	Operating Temperature [Max]	Operating Temperature [Min]
BANNER ENGINEERING WLB32ZC570QM	264 VAC	90 VAC	Aluminum (Al)	1500 lm	570 mm	22.44 in	Cascadable	IP50 - Dust Protected	Tubular Diffused	CE cULus	Connector	1.26 in	32 mm	1.81 in	46 mm	Cool White	50000 Hours	70 °C	-40 C
BANNER ENGINEERING WLB32ZC570MQM	264 VAC	90 VAC	Aluminum (Al)	1500 lm	570 mm	22.44 in	Cascadable Motion Detection	IP50 - Dust Protected	Tubular Diffused	CE cULus	Connector	1.26 in	32 mm	1.81 in	46 mm	Cool White	50000 Hours	70 °C	-40 C

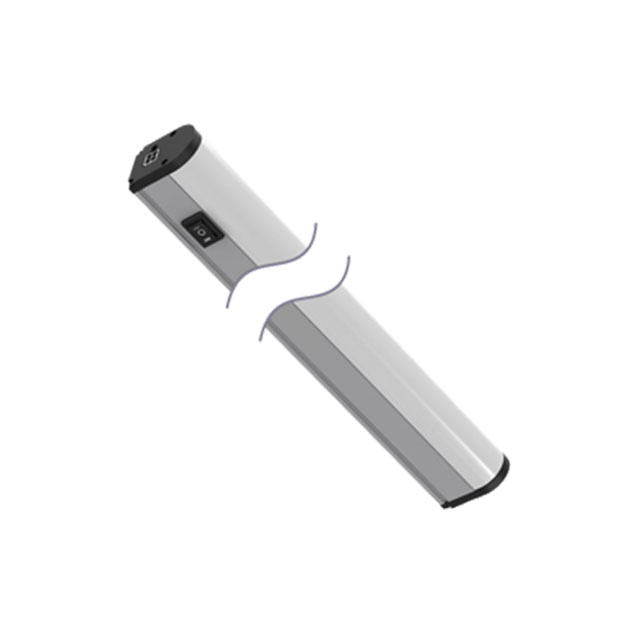

BANNER ENGINEERING WLB32ZC570PBQMB	264 VAC	90 VAC	Aluminum (Al)	1500 lm	570 mm	22.44 in	Cascadable High/Low/Off Switching	IP50 - Dust Protected	Tubular Diffused	CE cULus	Connector	1.26 in	32 mm	1.81 in	46 mm	Cool White	50000 Hours	70 °C	-40 C
BANNER ENGINEERING WLB32ZC570MQMB	264 VAC	90 VAC	Aluminum (Al)	1500 lm	570 mm	22.44 in	Cascadable Motion Detection	IP50 - Dust Protected	Tubular Diffused	CE cULus	Connector	1.26 in	32 mm	1.81 in	46 mm	Cool White	50000 Hours	70 °C	-40 C
BANNER ENGINEERING WLB32ZC570PBQM	264 VAC	90 VAC	Aluminum (Al)	1500 lm	570 mm	22.44 in	Cascadable High/Low/Off Switching	IP50 - Dust Protected	Tubular Diffused	CE cULus	Connector	1.26 in	32 mm	1.81 in	46 mm	Cool White	50000 Hours	70 °C	-40 C
BANNER ENGINEERING WLB32ZC570EMQM	264 VAC	90 VAC	Aluminum (Al)	1500 lm	570 mm	22.44 in	Cascadable Motion Detection Shield	IP50 - Dust Protected	Tubular Diffused	CE cULus	Connector	1.26 in	32 mm	1.81 in	46 mm	Cool White	50000 Hours	70 °C	-40 C

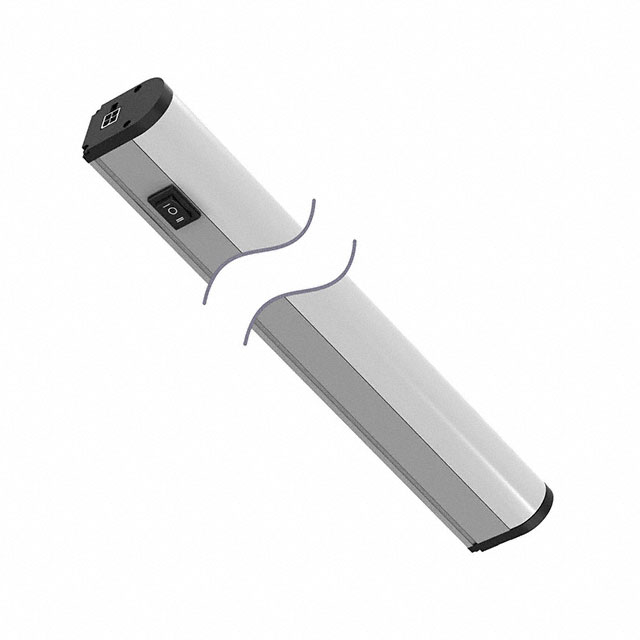

BANNER ENGINEERING WLB32ZC570PBQMC	264 VAC	90 VAC	Aluminum (Al)	1500 lm	570 mm	22.44 in	Cascadable High/Low/Off Switching	IP50 - Dust Protected	Tubular Diffused	CE cULus	Connector	1.26 in	32 mm	1.81 in	46 mm	Cool White	50000 Hours	70 °C	-40 C
