P6SMA/B Series

Catalog

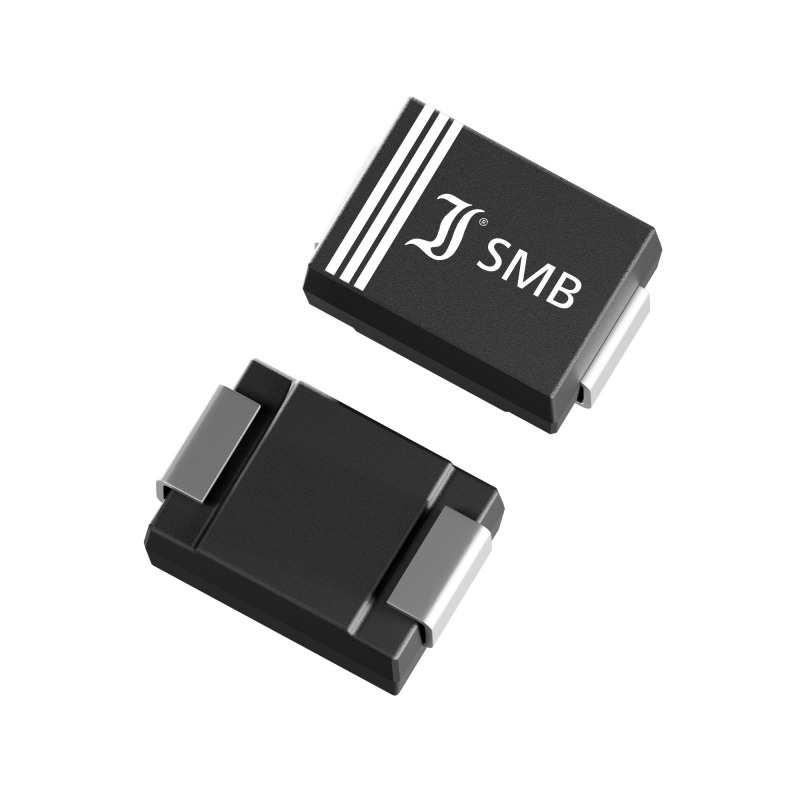

ESD PROTECTION DIODES / TVS DIODES TVS, SMB, 150C, 600W, UNIDIR

Part	Type	Voltage - Breakdown (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Unidirectional Channels [custom]	Mounting Type	Power - Peak Pulse	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Package / Case	Voltage - Clamping (Max) @ Ipp [Max]	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs) [custom]	Grade	Bidirectional Channels [custom]	Qualification
Diotec Semiconductor P6SMBJ20A	Zener	22.2 V	-50 °C	150 °C	General Purpose	1	Surface Mount	600 W	DO-214AA (SMB)	20 V	DO-214AA SMB	32.4 V	18.5 A
Diotec Semiconductor P6SMBJ60CA-AQ	Zener	66.7 V	-50 °C	150 °C			Surface Mount	600 W	DO-214AA (SMB)	60 V	DO-214AA SMB	96.8 V		6.2 A	Automotive	1	AEC-Q101
Diotec Semiconductor P6SMBJ70CA-AQ	Zener	77.8 V	-50 °C	150 °C			Surface Mount	600 W	DO-214AA (SMB)	70 V	DO-214AA SMB	113 V	5.3 A		Automotive	1	AEC-Q101
Diotec Semiconductor P6SMB350CA	Zener	332 V	-50 °C	150 °C	General Purpose		Surface Mount	600 W	DO-214AA (SMB)	300 V	DO-214AA SMB	482 V	1.2 A			1
Diotec Semiconductor P6SMBJ9.0CA	Zener	10 V	-50 °C	150 °C	General Purpose		Surface Mount	600 W	DO-214AA (SMB)	9 V	DO-214AA SMB	15.4 V	39 A			1
Diotec Semiconductor P6SMBJ48A	Zener	53.3 V	-50 °C	150 °C	General Purpose	1	Surface Mount	600 W	DO-214AA (SMB)	48 V	DO-214AA SMB	77.4 V	7.8 A
Diotec Semiconductor P6SMB440A	Zener	418 V	-50 °C	150 °C	General Purpose	1	Surface Mount	600 W	DO-214AA (SMB)	376 V	DO-214AA SMB	602 V
Diotec Semiconductor P6SMBJ70A	Zener	77.8 V	-50 °C	150 °C	General Purpose	1	Surface Mount	600 W	DO-214AA (SMB)	70 V	DO-214AA SMB	113 V	5.3 A
Diotec Semiconductor P6SMBJ24A-AQ	Zener	26.7 V	-50 °C	150 °C		1	Surface Mount	600 W	DO-214AA (SMB)	24 V	DO-214AA SMB	38.9 V	15.4 A		Automotive		AEC-Q101
Diotec Semiconductor P6SMBJ8.0CA	Zener	8.9 V	-50 °C	150 °C	General Purpose		Surface Mount	600 W	DO-214AA (SMB)	8 V	DO-214AA SMB	13.6 V	44.1 A			1
