IP4254 Series

Catalog

EMI FILTER, ESD PROTECTION, C-R-C PI FILTER, 8 DATA LINES, DFN-16

Part	Values	Resistance - Channel (Ohms)	Attenuation Value	Package / Case	Technology	Filter Order	Applications	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	ESD Protection	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Height [z]	Number of Channels
Freescale Semiconductor - NXP IP4254CZ16-8-TTL,1	30 pF 100 Ohms	100 Ohms	28 dB	16-UFDFN Exposed Pad	RC (Pi)	2nd	LAN WAN	Low Pass	85 °C	-40 °C	Surface Mount		3.3 mm	1.35 mm	0.13 in	0.053 in	0.022 in	0.55 mm	8

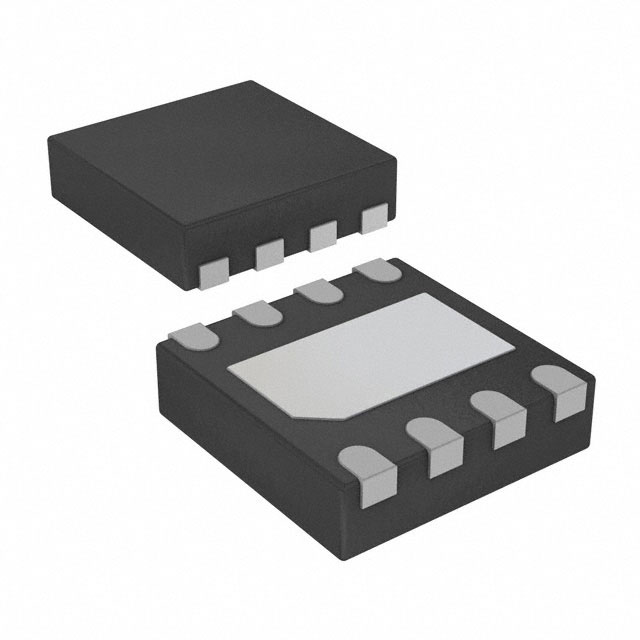

Freescale Semiconductor - NXP IP4254CZ8-4-TTL,13	30 pF 100 Ohms	100 Ohms	28 dB	8-UFDFN Exposed Pad	RC (Pi)	2nd	LAN WAN	Low Pass	85 °C	-40 °C	Surface Mount		1.7 mm	1.35 mm	0.067 in	0.053 in	0.022 in	0.55 mm	4
